高速IO模块FX5-16ET使用

光怪陆离的节日发布时间：2020-12-21 12:12:44 ，浏览量：3

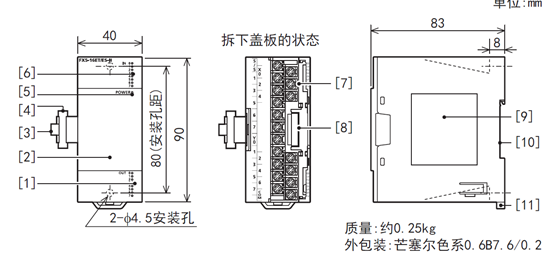

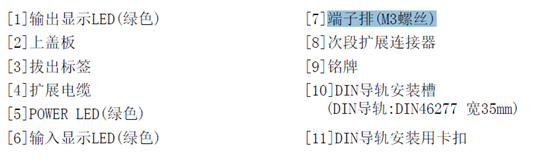

1、外观在这里插入图片描述

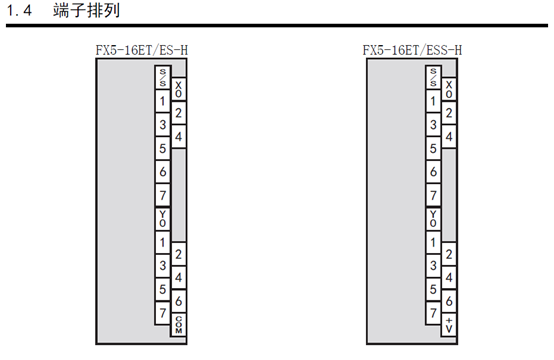

2、端子排列在这里插入图片描述

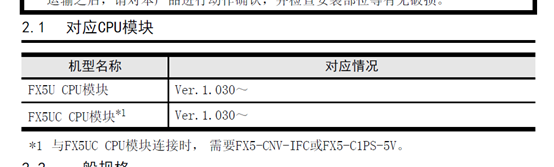

3、对应的CPU模块在这里插入图片描述

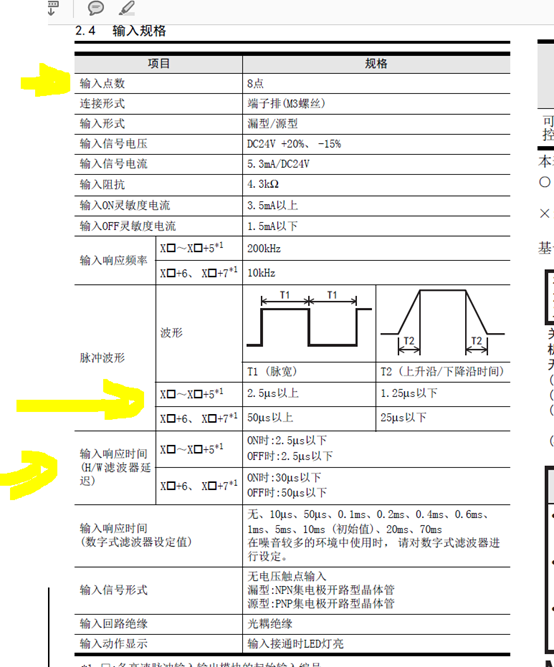

4、输入规格参数在这里插入图片描述

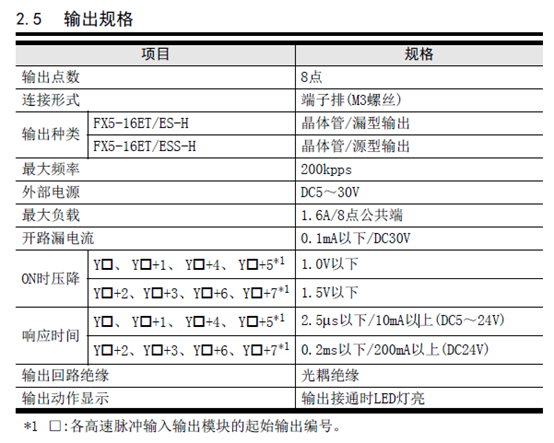

5、输出规格参数在这里插入图片描述
