SMC真空电磁阀气路接法

光怪陆离的节日发布时间：2021-04-25 15:08:50 ，浏览量：0

控制逻辑，两个Y点，y1亮吸嘴有真空，y2亮没有真空，y1y2不能同时亮。

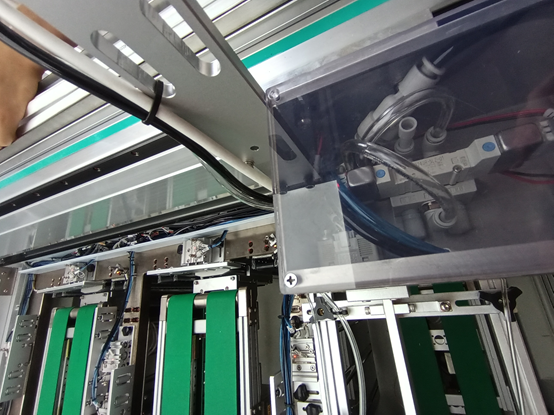

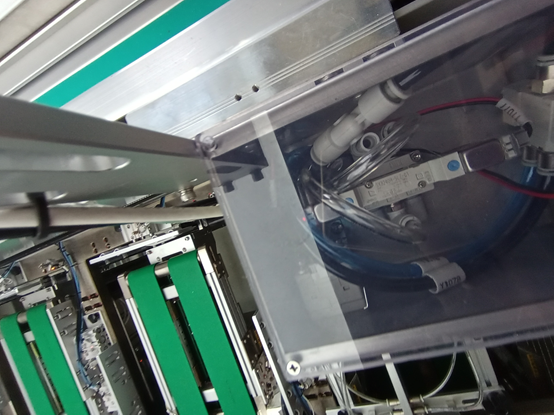

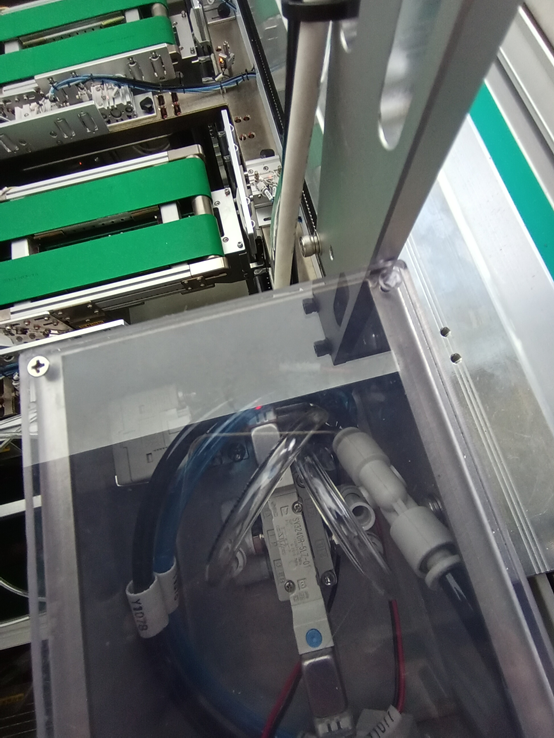

1、接气管实物图在这里插入图片描述

在这里插入图片描述

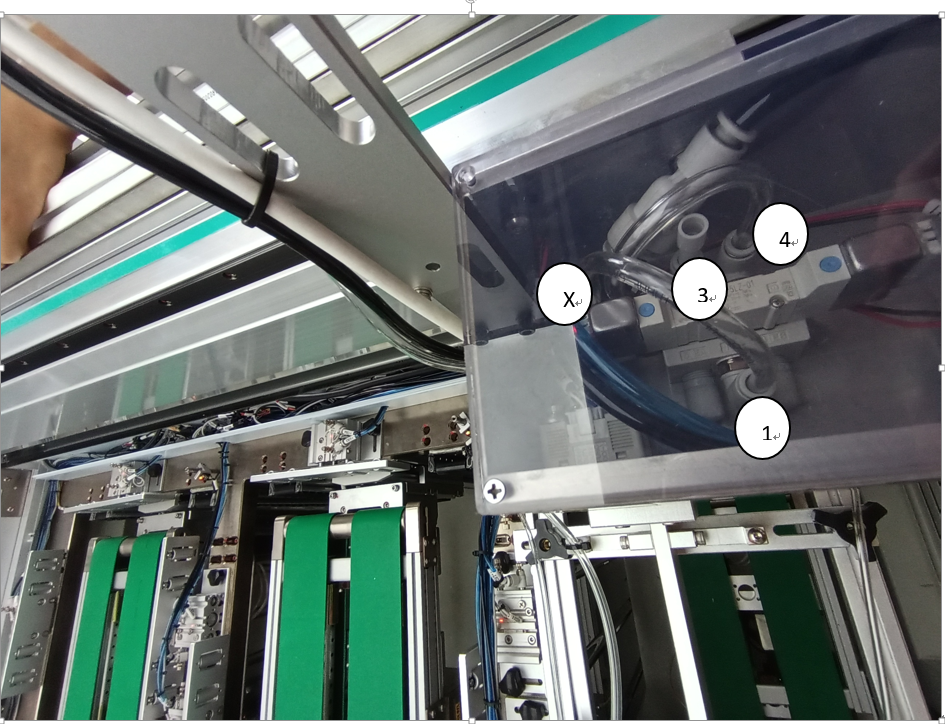

2、实际接：1P接真空，3号接真空出口，4号堵住，侧边X接压缩空气用于破真空

在这里插入图片描述
