倍福EL9410模块接线及常见报错解决

光怪陆离的节日 发布时间:2021-07-13 20:53:25 ,浏览量:5

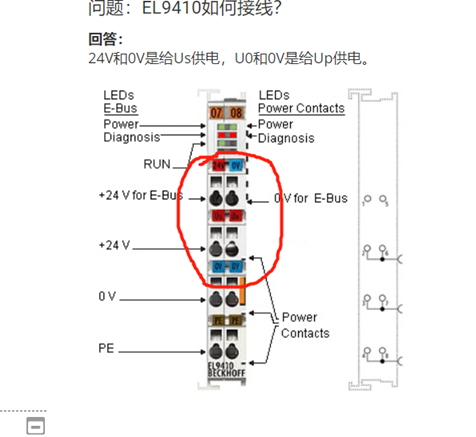

1、 EL9410:电源模块能卡再IO模块中 2、 接线如下: 在这里插入图片描述

3、 介绍文档: 4、 The EL9410 power supply terminal is used to refresh the E-bus. Data is exchanged between the coupler and the EtherCAT Terminal over the E-bus. Each terminal draws a certain amount of current from the E-bus (see “current consumption E-bus” in the technical data). This current is fed into the E-bus by the relevant coupler’s power supply unit. In configurations with a large number of terminals it is possible to use the EL9410 in order to supply an extra 2 A to the E-bus. The EL9410 has a diagnostic function which is displayed by LED and on the process image. 5、 EL9410电源终端用于刷新E总线。数据通过E总线在连接器和EtherCAT终端之间交换。每个终端从E-bus中吸取一定量的电流(见技术数据中的“电流消耗E-bus”)。该电
