【Android音视频开发】【006】使用Camera2框架预览视频，拍摄照片

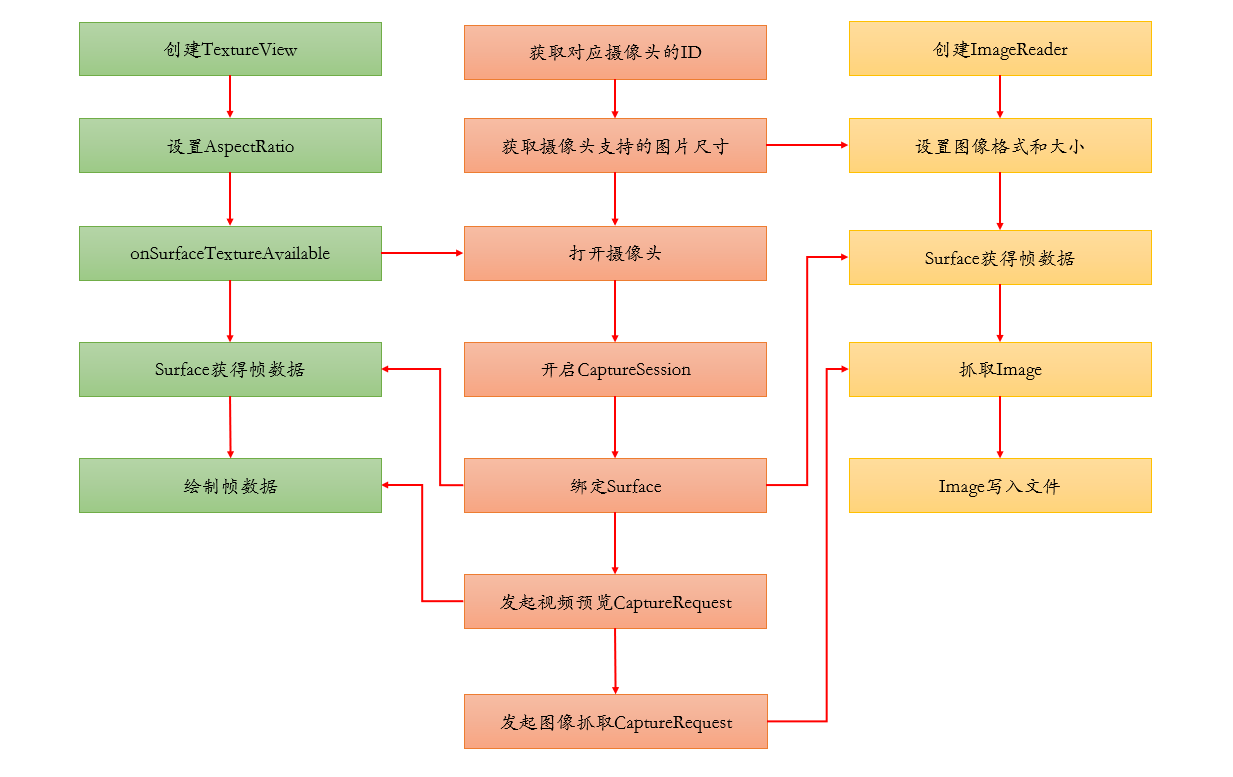

工作流程和原理 实现代码

AspectRatioTextureView是一个封装过的TextureView，提供了控制宽高比，快捷获取Surface的功能

ChainLinkList是一个封装过的LinkedList，使用了链式调用风格，方便使用

LoginActivity是核心逻辑代码，上面两个文件只是简单的辅助文件

	//LoginActivity.java

	@SuppressWarnings("all")
	public class LoginActivity extends CommonActivity {

	    @BindView(R.id.v_texture_view)
	    AspectRatioTextureView textureView;

	    @BindView(R.id.bt1)
	    View bt1;
	    @BindView(R.id.bt2)
	    View bt2;

	    HandlerThread backgroundThread;
	    Handler backgroundHandler;

	    CameraManager cameraManager;
	    CameraDevice cameraDevice;
	    CameraCaptureSession session;

	    ImageReader imageReader;

	    String cameraId;
	    Size previewSize;

	    long lastPictureCaptureTime;

	    protected void create() {
	        setContentView(R.layout.activity_main);
	        ButterKnife.bind(this, ctx);
	        requestAllPermissionWithCallback();
	    }

	    @Override
	    protected void onPermissionOk() {
	        init();
	    }

	    @SneakyThrows
	    private void init() {
	        //获取相机管理器
	        cameraManager = (CameraManager) ctx.getSystemService(Context.CAMERA_SERVICE);

	        //获取后置摄像机
	        for (String cameraId : cameraManager.getCameraIdList()) {
	            CameraCharacteristics characteristics = cameraManager.getCameraCharacteristics(cameraId);
	            Integer facing = characteristics.get(CameraCharacteristics.LENS_FACING);
	            if (facing == CameraCharacteristics.LENS_FACING_BACK) {
	                ctx.cameraId = cameraId;
	                //获取最大支持的图片大小
	                StreamConfigurationMap map = characteristics.get(CameraCharacteristics.SCALER_STREAM_CONFIGURATION_MAP);
	                previewSize = Collections.max(Arrays.asList(map.getOutputSizes(ImageFormat.JPEG)), (l, r) -> {
	                    return l.getWidth() * l.getHeight() - r.getWidth() * r.getHeight();
	                });
	            }
	        }

	        //创建一个HandlerThread，用来处理后台任务，如写出图片等
	        backgroundThread = new HandlerThread("CameraBackgroundThread");
	        backgroundThread.start();
	        backgroundHandler = new Handler(backgroundThread.getLooper());

	        //创建ImageReader，用于缓存和抓取帧图像
	        imageReader = ImageReader.newInstance(previewSize.getWidth(), previewSize.getHeight(), ImageFormat.JPEG, 1);
	        imageReader.setOnImageAvailableListener(ctx::writeOutImage, backgroundHandler);

	        //监听TextureView初始化完成
	        textureView.setSurfaceTextureListener(new TextureView.SurfaceTextureListener() {
	            @Override
	            @SneakyThrows
	            public void onSurfaceTextureAvailable(SurfaceTexture surface, int width, int height) {
	                cameraManager.openCamera(cameraId, new CameraDevice.StateCallback() {
	                    @Override
	                    @SneakyThrows
	                    public void onOpened(CameraDevice cameraDevice) {
	                        ctx.cameraDevice = cameraDevice;
	                        //创建关联TextureView和ImageReader的Surface
	                        Surface textureSurface = textureView.getSurface(previewSize.getWidth(), previewSize.getHeight());
	                        Surface imageSurface = imageReader.getSurface();
	                        //开启CaptureSession
	                        ChainLinkList surfaceList = ChainLinkList.create(Surface.class).add(textureSurface, imageSurface);
	                        cameraDevice.createCaptureSession(surfaceList.baseList, new CameraCaptureSession.StateCallback() {
	                            @Override
	                            public void onConfigured(CameraCaptureSession session) {
	                                ctx.session = session;
	                                startVideoPreview();
	                            }

	                            @Override
	                            public void onConfigureFailed(CameraCaptureSession session) {}
	                        }, backgroundHandler);
	                    }

	                    @Override
	                    public void onDisconnected(CameraDevice cameraDevice) {
	                        ctx.session = null;
	                        ctx.cameraDevice = null;
	                    }

	                    @Override
	                    public void onError(CameraDevice camera, int errorCode) {}
	                }, backgroundHandler);
	            }

	            @Override
	            public void onSurfaceTextureSizeChanged(SurfaceTexture surface, int width, int height) {}

	            @Override
	            public boolean onSurfaceTextureDestroyed(SurfaceTexture surface) { return false; }

	            @Override
	            public void onSurfaceTextureUpdated(SurfaceTexture surface) {}
	        });

	        //截取图片
	        bt1.setOnClickListener(v -> {
	            startImageCapture();
	        });
	    }

	    //视频预览
	    @SneakyThrows
	    void startVideoPreview() {
	        //发起CaptureRequest
	        CaptureRequest.Builder captureRequestBuilder = cameraDevice.createCaptureRequest(CameraDevice.TEMPLATE_PREVIEW);
	        captureRequestBuilder.addTarget(textureView.getSurface(previewSize.getWidth(), previewSize.getHeight()));
	        CaptureRequest captureRequest = captureRequestBuilder.build();
	        session.setRepeatingRequest(captureRequest, null, backgroundHandler);
	    }

	    //抓拍图片
	    @SneakyThrows
	    void startImageCapture() {
	        //发起CaptureRequest
	        CaptureRequest.Builder captureRequestBuilder = cameraDevice.createCaptureRequest(CameraDevice.TEMPLATE_STILL_CAPTURE);
	        captureRequestBuilder.addTarget(textureView.getSurface(previewSize.getWidth(), previewSize.getHeight()));
	        captureRequestBuilder.addTarget(imageReader.getSurface());
	        CaptureRequest captureRequest = captureRequestBuilder.build();
	        lastPictureCaptureTime = 0;
	        session.stopRepeating();
	        session.abortCaptures();
	        session.capture(captureRequest, null, backgroundHandler);
	    }

	    //写出图片
	    @SneakyThrows
	    void writeOutImage(ImageReader reader) {
	        //每5秒保存一次图片
	        long now = Times.millisOfNow();
	        if (now - lastPictureCaptureTime
