【高级UI】【023】Android手写波纹效果

前言

其实波纹效果特别简单，就是以手指触摸位置为中心，画一个逐渐变大的渐变圆

这里我们以Button为例，手写一个带波纹效果的Button

代码

	package com.android.architecture;

	import android.animation.ValueAnimator;
	import android.content.Context;
	import android.graphics.Canvas;
	import android.graphics.Paint;
	import android.graphics.RadialGradient;
	import android.graphics.Shader;
	import android.util.AttributeSet;
	import android.view.MotionEvent;
	import android.view.animation.AccelerateInterpolator;

	import androidx.appcompat.widget.AppCompatButton;

	@SuppressWarnings("all")
	public class RippleButton extends AppCompatButton {

	    Paint paint = new Paint();

	    float radius = 10;

	    ValueAnimator anim;

	    boolean inAnimation = false;

	    float rx;
	    float ry;

	    public RippleButton(Context context) {
	        this(context, null);
	    }

	    public RippleButton(Context context, AttributeSet attributeSet) {
	        this(context, attributeSet, 0);
	    }

	    public RippleButton(Context context, AttributeSet attributeSet, int style) {
	        super(context, attributeSet, style);
	        init(context, attributeSet);
	    }

	    protected void init(Context context, AttributeSet attributeSet) {
	        setLayerType(LAYER_TYPE_SOFTWARE, null);
	        //开启半径逐渐增大动画
	        anim = ValueAnimator.ofFloat(0, 1);
	        anim.setDuration(800);
	        anim.setInterpolator(new AccelerateInterpolator());
	        anim.addUpdateListener(animation -> {
	            float ratio = (float) animation.getAnimatedValue();
	            if (ratio == 0)
	                return;
	            radius = getMeasuredWidth() * ratio;
	            invalidate();
	        });
	    }

	    @Override
	    public boolean onTouchEvent(MotionEvent event) {
	        int action = event.getAction();
	        if (action == MotionEvent.ACTION_DOWN) {
	            inAnimation = true;
	            rx = event.getX();
	            ry = event.getY();
	            radius = 0;
	            anim.start();
	        } else if (action == MotionEvent.ACTION_UP || action == MotionEvent.ACTION_CANCEL) {
	            anim.end();
	            inAnimation = false;
	            rx = 0;
	            ry = 0;
	            radius = 0;
	        }
	        return true;
	    }

	    @Override
	    protected void onDraw(Canvas canvas) {
	        //画基类内容
	        super.onDraw(canvas);
	        //无动画
	        if (!inAnimation)
	            return;
	        //设置渐变
	        RadialGradient gradient = new RadialGradient(rx, ry, radius, 0x00000000, 0x22000000, Shader.TileMode.CLAMP);
	        paint.setShader(gradient);
	        //画渐变圆
	        canvas.drawCircle(rx, ry, radius, paint);
	    }
	}

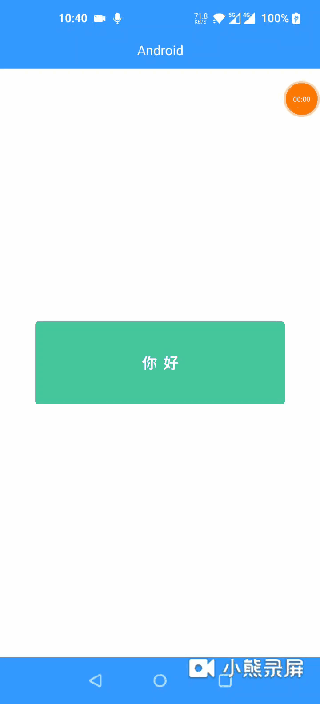

效果
