【高级UI】【031】阿里VLayout使用和源码解析

什么是VLayout

VLayout全称Virtual Layout Manager，是由阿里发布的一个针对RecyclerView的LayoutManager扩展库

它提供了若干种常用的布局，并支持多种不同的布局，按线性的方式进行组合

使用案例

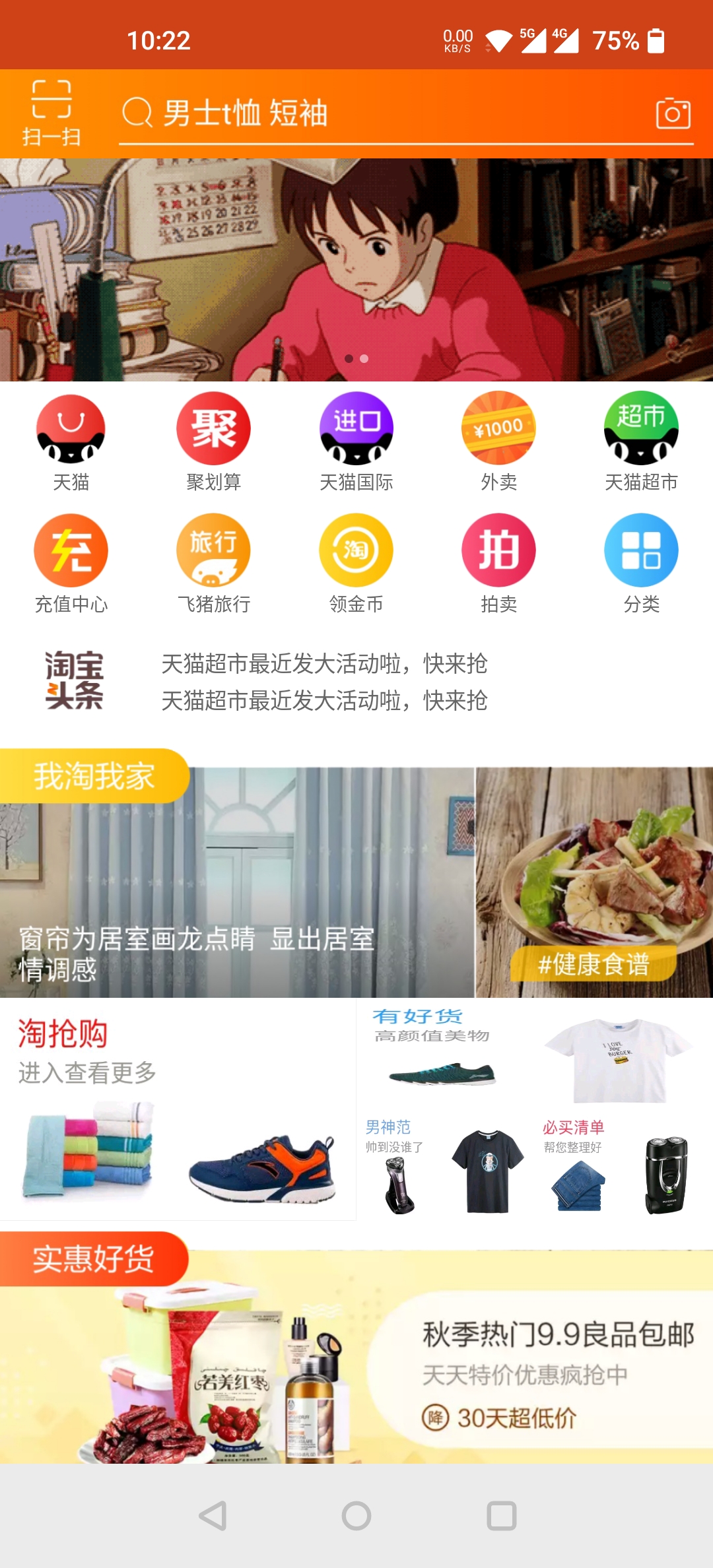

以淘宝首页为例，整个页面只需要一个RecyclerView即可完成

这是因为VLayout使用的是加强型的DelegateAdapter，它能够对多个子DelegateAdapter进行组合

VLayout十大布局

• LinearLayoutHelper：线性布局

• GridLayoutHelper：网格布局

• FixLayoutHelper：固定布局，始终在屏幕固定位置显示

• ScrollFixLayoutHelper：固定布局，当页面滑动到指定位置时才显示，可以用来做返回顶部或书签等功能

• FloatLayoutHelper：浮动布局，浮动显示在屏幕上，用户可以拖拽其位置

• ColumnLayoutHelper：栏格布局，所有元素排在一排，可配置不同列之间的宽度比

• SingleLayoutHelper：通栏布局，显示和页面等宽的单个元素

• OnePlusNLayoutHelper：一加N布局，左侧一个主元素，右侧N个子元素

• StickyLayoutHelper：吸附布局， 吸附在布局顶部或底部

• StaggeredGridLayoutHelper：瀑布流布局，一行铺满，自动摆到下一行

核心代码

package com.example.administrator.taobao; import android.graphics.Color; import android.os.Bundle; import android.widget.ImageView; import androidx.appcompat.app.AppCompatActivity; import androidx.recyclerview.widget.RecyclerView; import com.alibaba.android.vlayout.DelegateAdapter; import com.alibaba.android.vlayout.VirtualLayoutManager; import com.alibaba.android.vlayout.layout.GridLayoutHelper; import com.alibaba.android.vlayout.layout.LinearLayoutHelper; import com.alibaba.android.vlayout.layout.OnePlusNLayoutHelper; import com.bumptech.glide.Glide; import com.chad.library.adapter.base.BaseViewHolder; import com.sunfusheng.marqueeview.MarqueeView; import com.youth.banner.Banner; import com.youth.banner.BannerConfig; import com.youth.banner.Transformer; import java.util.Arrays; import java.util.LinkedList; import java.util.List; @SuppressWarnings("all") public class MainActivity extends AppCompatActivity { //不同类型的ViewType int VIEW_TYPE_BANNER = 1; int VIEW_TYPE_APP = 2; int VIEW_TYPE_NEWS = 3; int VIEW_TYPE_GOOD_TITLE = 4; int VIEW_TYPE_GOOD_THUMB = 5; //横幅位 String[] bannerUrls = {"https://img-blog.csdnimg.cn/03f90fd773d846de926b335276b9bdc6.gif", "https://img-blog.csdnimg.cn/03f90fd773d846de926b335276b9bdc6.gif"}; //应用位 String[] appTitles = {"天猫", "聚划算", "天猫国际", "外卖", "天猫超市", "充值中心", "飞猪旅行", "领金币", "拍卖", "分类"}; int[] appIcons = {R.mipmap.ic_tian_mao, R.mipmap.ic_ju_hua_suan, R.mipmap.ic_tian_mao_guoji, R.mipmap.ic_waimai, R.mipmap.ic_chaoshi, R.mipmap.ic_voucher_center, R.mipmap.ic_travel, R.mipmap.ic_tao_gold, R.mipmap.ic_auction, R.mipmap.ic_classify}; //新闻位 String[] newsUrls1 = {"天猫超市最近发大活动啦，快来抢", "没有最便宜，只有更便宜！"}; String[] newsUrls2 = {"天猫超市最近发大活动啦，快来抢", "没有最便宜，只有更便宜！"}; //商品位 int[] goodTitles = {R.mipmap.item1, R.mipmap.item2, R.mipmap.item3, R.mipmap.item4, R.mipmap.item5}; int[] goodThumbs = {R.mipmap.flashsale1, R.mipmap.flashsale2, R.mipmap.flashsale3, R.mipmap.flashsale4}; RecyclerView recyclerView; List<DelegateAdapter.Adapter> subAdapters = new LinkedList(); @Override protected void onCreate(Bundle savedInstanceState) { super.onCreate(savedInstanceState); setContentView(R.layout.activity_main); initView(); } private void initView() { recyclerView = findViewById(R.id.recycler); //1.设置总布局管理器 VirtualLayoutManager layoutManager = new VirtualLayoutManager(this); recyclerView.setLayoutManager(layoutManager); //2.设置回收池大小（相同类型的View可以复用，防止多次创建ItemView） RecyclerView.RecycledViewPool viewPool = new RecyclerView.RecycledViewPool(); viewPool.setMaxRecycledViews(0, 10); recyclerView.setRecycledViewPool(viewPool); //3.逐个设置子模块适配器 addBannerAdapter(); addAppAdapter(); addNewsAdapter(); addGoodAdapter(); //4.设置总适配器 DelegateAdapter mainAdapter = new DelegateAdapter(layoutManager, true); mainAdapter.setAdapters(subAdapters); recyclerView.setAdapter(mainAdapter); } //添加子适配器：商品位 private void addGoodAdapter() { for (int i = 0; i < goodTitles.length; i++) { //商品标题 int goodTitle = goodTitles[i]; LinearLayoutHelper linearLayoutHelper = new LinearLayoutHelper(); SubAdapter titleAdapter = new SubAdapter(this, linearLayoutHelper, R.layout.vlayout_title, 1, VIEW_TYPE_GOOD_TITLE) { @Override public void onBindViewHolder(BaseViewHolder holder, int position) { super.onBindViewHolder(holder, position); holder.setImageResource(R.id.iv, goodTitle); } }; subAdapters.add(titleAdapter); //商品列表 OnePlusNLayoutHelper onePlusNLayoutHelper = new OnePlusNLayoutHelper(4); onePlusNLayoutHelper.setBgColor(Color.WHITE); SubAdapter girdAdapter = new SubAdapter(this, onePlusNLayoutHelper, R.layout.vlayout_image, 4, VIEW_TYPE_GOOD_THUMB) { @Override public void onBindViewHolder(BaseViewHolder holder, int position) { super.onBindViewHolder(holder, position); int item = goodThumbs[position]; ImageView iv = holder.getView(R.id.iv); Glide.with(getApplicationContext()).load(item).into(iv); } }; subAdapters.add(girdAdapter); } } //添加子适配器：新闻位 private void addNewsAdapter() { LinearLayoutHelper linearLayoutHelper = new LinearLayoutHelper(); SubAdapter newsAdapter = new SubAdapter(this, linearLayoutHelper, R.layout.vlayout_news, 1, VIEW_TYPE_NEWS) { @Override public void onBindViewHolder(BaseViewHolder holder, int position) { super.onBindViewHolder(holder, position); MarqueeView marqueeView1 = holder.getView(R.id.marqueeView1); MarqueeView marqueeView2 = holder.getView(R.id.marqueeView2); marqueeView1.startWithList(Arrays.asList(newsUrls1)); marqueeView2.startWithList(Arrays.asList(newsUrls2)); marqueeView1.startWithList(Arrays.asList(newsUrls1), R.anim.anim_bottom_in, R.anim.anim_top_out); marqueeView2.startWithList(Arrays.asList(newsUrls2), R.anim.anim_bottom_in, R.anim.anim_top_out); } }; subAdapters.add(newsAdapter); } //添加子适配器：应用位 private void addAppAdapter() { GridLayoutHelper gridLayoutHelper = new GridLayoutHelper(5); gridLayoutHelper.setBgColor(Color.WHITE); SubAdapter appAdapter = new SubAdapter(this, gridLayoutHelper, R.layout.vlayout_menu, 10, VIEW_TYPE_APP) { @Override public void onBindViewHolder(BaseViewHolder holder, int position) { super.onBindViewHolder(holder, position); holder.setText(R.id.tv_menu_title_home, appTitles[position] + ""); holder.setImageResource(R.id.iv_menu_home, appIcons[position]); } }; subAdapters.add(appAdapter); } //添加子适配器：横幅位 private void addBannerAdapter() { LinearLayoutHelper linearLayoutHelper = new LinearLayoutHelper(); SubAdapter bannerAdapter = new SubAdapter(this, linearLayoutHelper, R.layout.vlayout_banner, 1, VIEW_TYPE_BANNER) { @Override public void onBindViewHolder(BaseViewHolder holder, int position) { super.onBindViewHolder(holder, position); Banner banner = holder.getView(R.id.banner); banner.setBannerStyle(BannerConfig.CIRCLE_INDICATOR); banner.setImageLoader(new GlideImageLoader()); banner.setImages(Arrays.asList(bannerUrls)); banner.setBannerAnimation(Transformer.DepthPage); banner.isAutoPlay(true); banner.setDelayTime(5000); banner.setIndicatorGravity(BannerConfig.CENTER); banner.start(); } }; subAdapters.add(bannerAdapter); } }

VLayout工作原理

• SubAdapter：负责将单个模块的Data转成View

• SubLayoutHelper：负责对子模块内的ItemView进行布局

• MainAdapter：对所有SubAdapter的数据进行整合，形成新的DataSet，并分配新的Position和ViewType。RecyclerView向MainAdapter取数据时，MainAdapter再通过所有SubAdapter逆查找数据

• VirtualLayoutManager：完成总模块的布局功能，LayoutManager通过MainAdapter可以找到ItemView对应的SubAdapter，再将ItemView的布局工作，交给SubAdapter对应的SubLayoutHelper处理即可

• SubAdapter和MainAdapter都继承自DelegateAdapter

• VirtualLayoutManager本身是一个线性布局

VLayout核心函数工作流程

• RecyclerView.setLayoutManager => RecyclerView.requestLayout

• RecyclerView.setAdapter => RecyclerView.requestLayout

• RecyclerView.requestLayout => RecyclerView.onLayout => RecyclerView.dispatchLayout => RecyclerView.dispatchLayoutStep2 => VirtualLayoutManager.onLayoutChildren

• VirtualLayoutManager.onLayoutChildren => ExposeLinearLayoutManagerEx.onLayoutChildren（基类方法） => ExposeLinearLayoutManagerEx.fill => ExposeLinearLayoutManagerEx.layoutChunk

• VirtualLayoutManager.layoutChunk（组装所有ItemView） => LayoutHelper.doLayout（调用子模块的LayoutHelper来布局ItemView） => LayoutHelper.layoutViews

• LayoutHelper.layoutViews => BaseLayoutHelper.nextView => LayoutState.next => Recycler.getViewForPosition => Recycler.tryBindViewHolderByDeadline => Adapter.createViewHolder/Adapter.bindViewHolder

源码下载

阿里VLayout.zip
