【LaTex】IEEE论文作者信息排版

引言

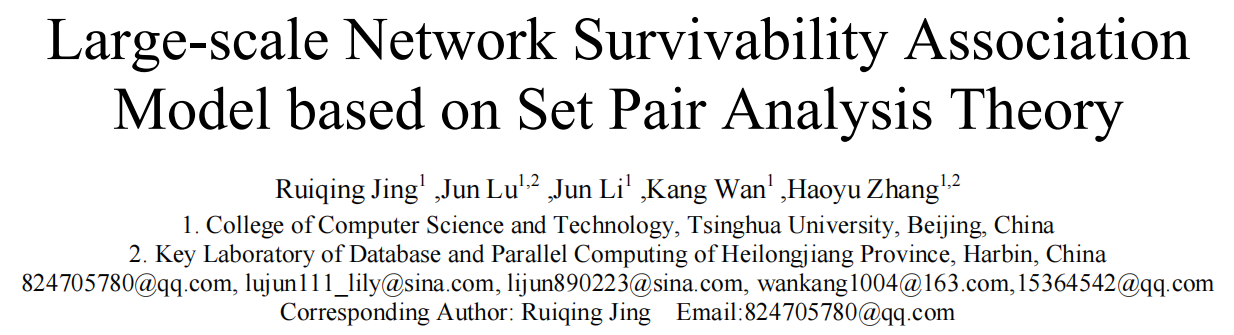

IEEE 会议论文投稿，样例论文作者信息排版如下：

但是给的 LaTex 模板里面渲染的效果却是这样的：

对应的 LaTex 语法如下：

\author{\IEEEauthorblockN{Michael Shell}
\IEEEauthorblockA{School of Electrical and\\Computer Engineering\\
Georgia Institute of Technology\\
Atlanta, Georgia 30332--0250\\
Email: http://www.michaelshell.org/contact.html}
\and
\IEEEauthorblockN{Homer Simpson}
\IEEEauthorblockA{Twentieth Century Fox\\
Springfield, USA\\
Email: homer@thesimpsons.com}
\and
\IEEEauthorblockN{James Kirk\\ and Montgomery Scott}
\IEEEauthorblockA{Starfleet Academy\\
San Francisco, California 96678--2391\\
Telephone: (800) 555--1212\\
Fax: (888) 555--1212}}

如何修改 LaTex 语句，使其达到样例论文展示的效果？

教程

按照如下修改方式修改：

\author{
\IEEEauthorblockN{
Michael Shell\IEEEauthorrefmark{1},
Homer Simpson\IEEEauthorrefmark{2},
James Kirk\IEEEauthorrefmark{3}, and
Montgomery Scott\IEEEauthorrefmark{3}}
\IEEEauthorblockA{\IEEEauthorrefmark{1}School of Electrical and Computer Engineering, Georgia Institute of Technology, Atlanta, Georgia 30332--0250}
\IEEEauthorblockA{\IEEEauthorrefmark{2}Twentieth Century Fox, Springfield, USA}
\IEEEauthorblockA{\IEEEauthorrefmark{3}Starfleet Academy, San Francisco, California 96678--2391}
\IEEEauthorblockA{\IEEEauthorrefmark{3}Starfleet Academy, San Francisco, California 96678--2391}
\IEEEauthorblockA{ms@michaelshell.org, homer@thesimpsons.com, (800) 555--1212, (888) 555--1212}
\IEEEauthorblockA{Corresponding Author: Michael Shell \quad Email: ms@michaelshell.org}}

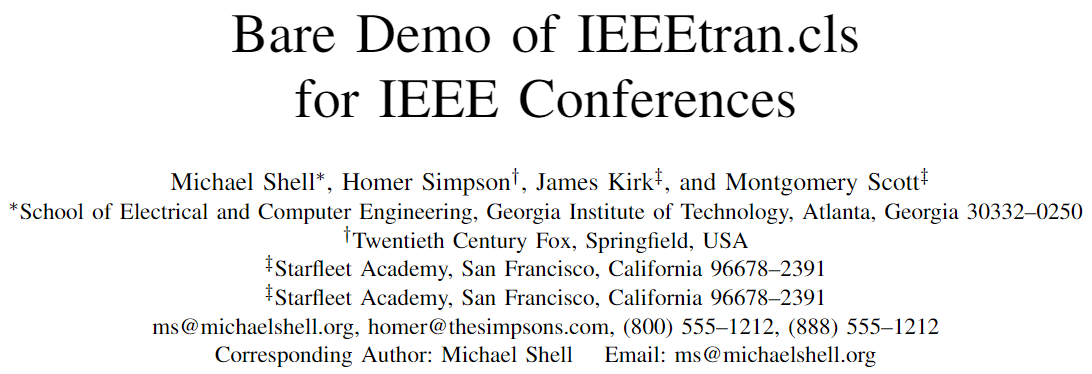

修改完成渲染效果如下：

发现还是不太一样，作者标注格式是星号，而我们要的是数字。

要想实现数字的效果，需要在 \begin{document} 前插入：

\DeclareRobustCommand*{\IEEEauthorrefmark}[1]{%
    \raisebox{0pt}[0pt][0pt]{\textsuperscript{\footnotesize\ensuremath{#1}}}}

最终效果：

参考

https://blog.csdn.net/mimomumu/article/details/59111005
