06 mosquitto 配置日期信息

杨林伟 发布时间:2019-09-03 17:59:53 ,浏览量:2

1、在mosquitto.conf文件中插入:

#把日志信息输入到指定文件
log_dest file /MosquittoTest/DisSunLog_1.log

#在控制台输出信息,运行win服务无效
log_dest stdout

#不记录
#log_type none

#########下面的debug、error、warning.....等等可以组合使用。
#记录网络通信包,通信包大小(含心跳包),但不显示内容
log_type debug

#错误信息(没见过)
log_type error

#警告信息(没见过)
log_type warning

#设备的订阅信息、发布信息及下线信息(端口、设备名、用户、不包发布内容)
log_type notice

#服务启动关闭信息、版本号、端口号、配置文件信息
log_type information

#所有设备订阅主题提醒
log_type subscribe

#这个没有试出来干啥用的(没见过)
#log_type unsubscribe

#websockets链接信息(没见过)
#log_type websockets
#websockets_log_level 0

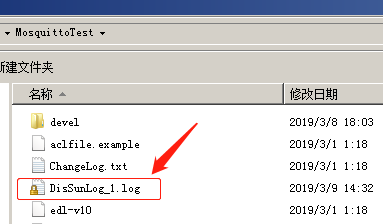

3、然后重启服务,我们发一条信息来看看记录了什么。 在这里插入图片描述 4、按Ctrl+C 停止主服务,如果不停止服务,日志文件会被独占锁住无法打开。找到这个日志 在这里插入图片描述 5、日志解析

##########:以下是information信息
1552112775: mosquitto version 1.5.8 starting
1552112775: Config loaded from mosquitto.conf.
1552112775: Opening ipv6 listen socket on port 1883.
1552112775: Opening ipv4 listen socket on port 1883.

##########:以下是subscribe信息(伪造)
1552113940: mosqsub|11332-DisSunPad 0 'dissun/topic'
20-DisSunPad (c1, k60, u'dissun').

##########:以下是notice信息,订阅客户端上线11332
1552112782: New connection from ::1 on port 1883.
1552112782: New client connected from ::1 as mosqsub|11332-DisSunPad (c1, k60, u'dissun').

##########:以下是debug信息,订阅客户端上线11332
1552112782: No will message specified.
1552112782: Sending CONNACK to mosqsub|11332-DisSunPad (0, 0)
1552112782: Received SUBSCRIBE from mosqsub|11332-DisSunPad
1552112782:     'dissun/topic' (QoS 0)
1552112782: mosqsub|11332-DisSunPad 0 'dissun/topic'
1552112782: Sending SUBACK to mosqsub|11332-DisSunPad

##########:以下是notice信息,发布客户端上线12284
1552112832: New connection from ::1 on port 1883.
1552112832: New client connected from ::1 as mosqpub|12284-DisSunPad (c1, k60, u'dissun').

##########:以下是debug信息,发布客户端上线12284,并发布12字节的信息,然后离线。
1552112832: No will message specified.
1552112832: Sending CONNACK to mosqpub|12284-DisSunPad (0, 0)
1552112832: Received PUBLISH from mosqpub|12284-DisSunPad (d0, q0, r0, m0, ''dissun/topic'', ... (12 bytes))
1552112832: Sending PUBLISH to mosqsub|11332-DisSunPad (d0, q0, r0, m0, ''dissun/topic'', ... (12 bytes))
1552112832: Received DISCONNECT from mosqpub|12284-DisSunPad

##########:以下是notice信息,发布客户端离线12284
1552112832: Client mosqpub|12284-DisSunPad disconnected.

##########:以下是debug信息,订阅客户端保持跟mosquitto的联系。PINGREQ请求心跳包,PINGRESP回应心跳包
1552112842: Received PINGREQ from mosqsub|11332-DisSunPad
1552112842: Sending PINGRESP to mosqsub|11332-DisSunPad
1552112902: Received PINGREQ from mosqsub|11332-DisSunPad
1552112902: Sending PINGRESP to mosqsub|11332-DisSunPad
1552112962: Received PINGREQ from mosqsub|11332-DisSunPad

##########:以下是information信息 主服务中断
1552113191: mosquitto version 1.5.8 terminating
