代码已上传到Github，有兴趣的同学可以下载来看看：https://github.com/ylw-github/SpringBoot-Transaction-Demo

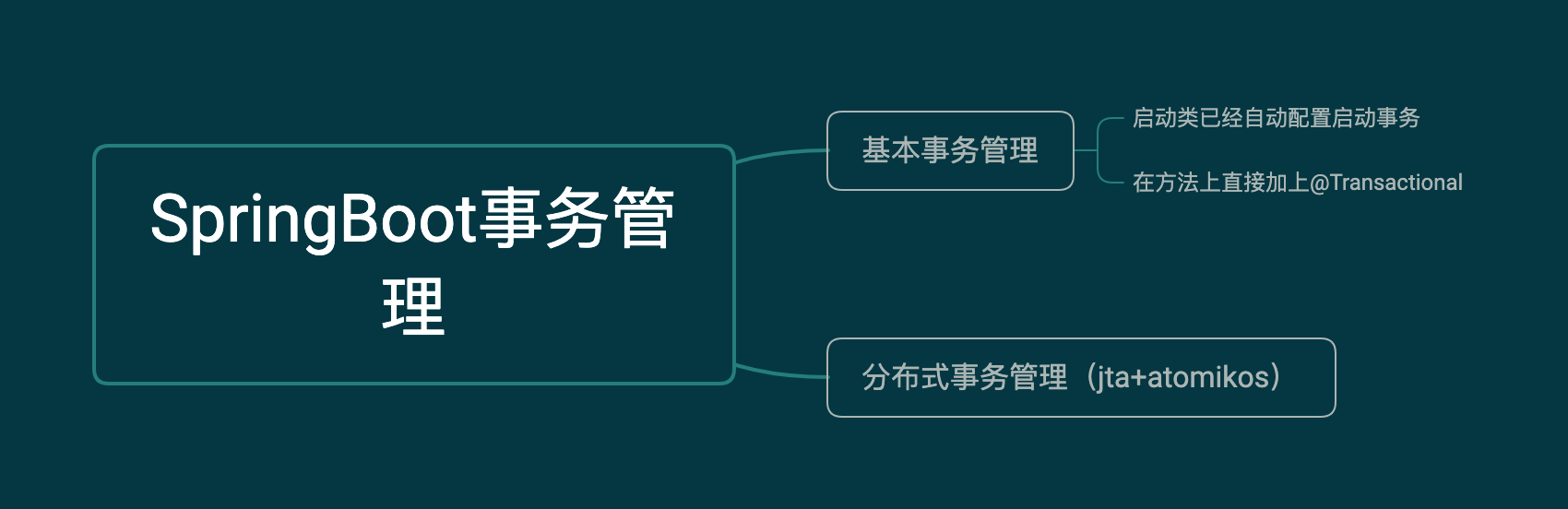

1. SpringBoot事务管理SpringBoot默认集成事务,只主要在方法上加上@Transactional即可
操作比较简单，此处不再详述，可以参考：https://blog.csdn.net/justry_deng/article/details/80828180
2. SpringBoot分布式事务管理可以使用springboot+jta+atomikos 进行分布式事务管理，下面来详细介绍集成的步骤：
2.1 添加mave依赖
org.springframework.boot
spring-boot-starter-parent
2.0.0.RELEASE
org.springframework.boot
spring-boot-starter-jta-atomikos
org.springframework.boot
spring-boot-starter
org.springframework.boot
spring-boot-starter-test
test
org.mybatis.spring.boot
mybatis-spring-boot-starter
1.1.1
mysql
mysql-connector-java
org.springframework.boot
spring-boot-starter-web
# Mysql 1
mysql.datasource.test1.url = jdbc:mysql://localhost:3306/test?useUnicode=true&characterEncoding=utf-8
mysql.datasource.test1.username = root
mysql.datasource.test1.password = 123456
mysql.datasource.test1.minPoolSize = 3
mysql.datasource.test1.maxPoolSize = 25
mysql.datasource.test1.maxLifetime = 20000
mysql.datasource.test1.borrowConnectionTimeout = 30
mysql.datasource.test1.loginTimeout = 30
mysql.datasource.test1.maintenanceInterval = 60
mysql.datasource.test1.maxIdleTime = 60
# Mysql 2
mysql.datasource.test2.url =jdbc:mysql://localhost:3306/test02?useUnicode=true&characterEncoding=utf-8
mysql.datasource.test2.username =root
mysql.datasource.test2.password =123456
mysql.datasource.test2.minPoolSize = 3
mysql.datasource.test2.maxPoolSize = 25
mysql.datasource.test2.maxLifetime = 20000
mysql.datasource.test2.borrowConnectionTimeout = 30
mysql.datasource.test2.loginTimeout = 30
mysql.datasource.test2.maintenanceInterval = 60
mysql.datasource.test2.maxIdleTime = 60
总共要写两个配置类DBConfig1和DBConfig2：
@ConfigurationProperties(prefix = "mysql.datasource.test1")
public class DBConfig1 {
private String url;
private String username;
private String password;
private int minPoolSize;
private int maxPoolSize;
private int maxLifetime;
private int borrowConnectionTimeout;
private int loginTimeout;
private int maintenanceInterval;
private int maxIdleTime;
private String testQuery;
//getter setter...
//DBConfig2///
@ConfigurationProperties(prefix = "mysql.datasource.test2")
public class DBConfig2 {
private String url;
private String username;
private String password;
private int minPoolSize;
private int maxPoolSize;
private int maxLifetime;
private int borrowConnectionTimeout;
private int loginTimeout;
private int maintenanceInterval;
private int maxIdleTime;
private String testQuery;
//getter setter...
配置的时候注意，每个扫描mapper的包位置不一致。
数据源1：
package com.ylw.datasource;
@Configuration
// basePackages 最好分开配置 如果放在同一个文件夹可能会报错
@MapperScan(basePackages = "com.ylw.mapper.test01", sqlSessionTemplateRef = "testSqlSessionTemplate")
public class MyBatisConfig1 {
// 配置数据源
@Bean(name = "testDataSource")
public DataSource testDataSource(DBConfig1 testConfig) throws SQLException {
MysqlXADataSource mysqlXaDataSource = new MysqlXADataSource();
mysqlXaDataSource.setUrl(testConfig.getUrl());
mysqlXaDataSource.setPinGlobalTxToPhysicalConnection(true);
mysqlXaDataSource.setPassword(testConfig.getPassword());
mysqlXaDataSource.setUser(testConfig.getUsername());
mysqlXaDataSource.setPinGlobalTxToPhysicalConnection(true);
// 将本地事务注册到创 Atomikos全局事务
AtomikosDataSourceBean xaDataSource = new AtomikosDataSourceBean();
xaDataSource.setXaDataSource(mysqlXaDataSource);
xaDataSource.setUniqueResourceName("testDataSource");
xaDataSource.setMinPoolSize(testConfig.getMinPoolSize());
xaDataSource.setMaxPoolSize(testConfig.getMaxPoolSize());
xaDataSource.setMaxLifetime(testConfig.getMaxLifetime());
xaDataSource.setBorrowConnectionTimeout(testConfig.getBorrowConnectionTimeout());
xaDataSource.setLoginTimeout(testConfig.getLoginTimeout());
xaDataSource.setMaintenanceInterval(testConfig.getMaintenanceInterval());
xaDataSource.setMaxIdleTime(testConfig.getMaxIdleTime());
xaDataSource.setTestQuery(testConfig.getTestQuery());
return xaDataSource;
}
@Bean(name = "testSqlSessionFactory")
public SqlSessionFactory testSqlSessionFactory(@Qualifier("testDataSource") DataSource dataSource)
throws Exception {
SqlSessionFactoryBean bean = new SqlSessionFactoryBean();
bean.setDataSource(dataSource);
return bean.getObject();
}
@Bean(name = "testSqlSessionTemplate")
public SqlSessionTemplate testSqlSessionTemplate(
@Qualifier("testSqlSessionFactory") SqlSessionFactory sqlSessionFactory) throws Exception {
return new SqlSessionTemplate(sqlSessionFactory);
}
}
数据源2：
@Configuration
@MapperScan(basePackages = "com.ylw.mapper.test02", sqlSessionTemplateRef = "test2SqlSessionTemplate")
public class MyBatisConfig2 {
// 配置数据源
@Bean(name = "test2DataSource")
public DataSource testDataSource(DBConfig2 testConfig) throws SQLException {
MysqlXADataSource mysqlXaDataSource = new MysqlXADataSource();
mysqlXaDataSource.setUrl(testConfig.getUrl());
mysqlXaDataSource.setPinGlobalTxToPhysicalConnection(true);
mysqlXaDataSource.setPassword(testConfig.getPassword());
mysqlXaDataSource.setUser(testConfig.getUsername());
mysqlXaDataSource.setPinGlobalTxToPhysicalConnection(true);
AtomikosDataSourceBean xaDataSource = new AtomikosDataSourceBean();
xaDataSource.setXaDataSource(mysqlXaDataSource);
xaDataSource.setUniqueResourceName("test2DataSource");
xaDataSource.setMinPoolSize(testConfig.getMinPoolSize());
xaDataSource.setMaxPoolSize(testConfig.getMaxPoolSize());
xaDataSource.setMaxLifetime(testConfig.getMaxLifetime());
xaDataSource.setBorrowConnectionTimeout(testConfig.getBorrowConnectionTimeout());
xaDataSource.setLoginTimeout(testConfig.getLoginTimeout());
xaDataSource.setMaintenanceInterval(testConfig.getMaintenanceInterval());
xaDataSource.setMaxIdleTime(testConfig.getMaxIdleTime());
xaDataSource.setTestQuery(testConfig.getTestQuery());
return xaDataSource;
}
@Bean(name = "test2SqlSessionFactory")
public SqlSessionFactory testSqlSessionFactory(@Qualifier("test2DataSource") DataSource dataSource)
throws Exception {
SqlSessionFactoryBean bean = new SqlSessionFactoryBean();
bean.setDataSource(dataSource);
return bean.getObject();
}
@Bean(name = "test2SqlSessionTemplate")
public SqlSessionTemplate testSqlSessionTemplate(
@Qualifier("test2SqlSessionFactory") SqlSessionFactory sqlSessionFactory) throws Exception {
return new SqlSessionTemplate(sqlSessionFactory);
}
}
注意包结构不一样。
UserMapperTest01：
package com.ylw.mapper.test01;
public interface UserMapperTest01 {
// 查询语句
@Select("SELECT * FROM t_user WHERE name = #{name}")
User findByName(@Param("name") String name);
// 添加
@Insert("INSERT INTO t_user(uuid,name, age) VALUES(#{uuid},#{name}, #{age})")
int insert(@Param("uuid") String uuid,@Param("name") String name, @Param("age") Integer age);
}
UserMapperTest02：
package com.ylw.mapper.test02;
public interface UserMapperTest02 {
// 查询语句
@Select("SELECT * FROM t_user WHERE name = #{name}")
User findByName(@Param("name") String name);
// 添加
@Insert("INSERT INTO t_user(uuid,name, age) VALUES(#{uuid},#{name}, #{age})")
int insert(@Param("uuid") String uuid,@Param("name") String name, @Param("age") Integer age);
}
UserServiceTest01：
package com.ylw.service.test01;
@Service
public class UserServiceTest01 {
@Autowired
private UserMapperTest01 userMapperTest01;
@Transactional
public int insertUser(String name, Integer age) {
int insertUserResult = userMapperTest01.insert(UUID.randomUUID().toString(), name, age);
System.out.println("######insertUserResult:{}##########-> " + insertUserResult);
//int i = 1 / age;
// 验证事务开启
return insertUserResult;
}
}
UserServiceTest02：
package com.ylw.service.test02;
@Service
public class UserServiceTest02 {
@Autowired
private UserMapperTest02 userMapperTest02;
@Autowired
private UserMapperTest01 userMapperTest01;
@Transactional
public int insertUser(String name, Integer age) {
int insertUserResult = userMapperTest02.insert(UUID.randomUUID().toString(), name, age);
System.out.println("######insertUserResult:{}########## -> " + insertUserResult);
// 怎么样验证事务开启成功!~
//int i = 1 / age;
return insertUserResult;
}
@Transactional()
public int insertUserTest01AndTest02(String name, Integer age) {
// 传统分布式事务解决方案 jta+atomikos 注册同一个全局事务中
// 第一个数据源
int insertUserResult01 = userMapperTest01.insert(UUID.randomUUID().toString(), name, age);
// 第二个数据源
int insertUserResult02 = userMapperTest02.insert(UUID.randomUUID().toString(), name, age);
//int i = 1 / 0;
int result = insertUserResult01 + insertUserResult02;
// test01入库 test02回滚
return result;
}
}
启动类，要配置EnableConfigurationProperties：
// 开启读取配置文件
@EnableConfigurationProperties(value = { DBConfig1.class, DBConfig2.class })
@SpringBootApplication
public class MybatisApp03 {
public static void main(String[] args) {
SpringApplication.run(MybatisApp03.class, args);
}
}
controller：
@RestController
public class MybatisMultilDataSourceController {
@Autowired
private UserServiceTest01 userServiceTest01;
@Autowired
private UserServiceTest02 userServiceTest02;
@RequestMapping(value = "/insertUserTest1" ,method = RequestMethod.GET)
public Integer insertUserTest1(String name, Integer age) {
return userServiceTest01.insertUser(name, age);
}
@RequestMapping(value = "/insertUserTest2",method = RequestMethod.GET)
public Integer insertUserTest2(String name, Integer age) {
return userServiceTest02.insertUser(name, age);
}
@RequestMapping(value ="/insertUserTest01AndTest02",method = RequestMethod.GET)
public int insertUserTest01AndTest02(String name, Integer age) {
return userServiceTest02.insertUserTest01AndTest02(name, age);
}
}
在浏览器打开三个页面，地址分别是：
- http://localhost:8080/insertUserTest1?name=name1&age=10
- http://localhost:8080/insertUserTest2?name=name2&age=18
- http://localhost:8080/insertUserTest01AndTest02?name=name1AndName2&age=19

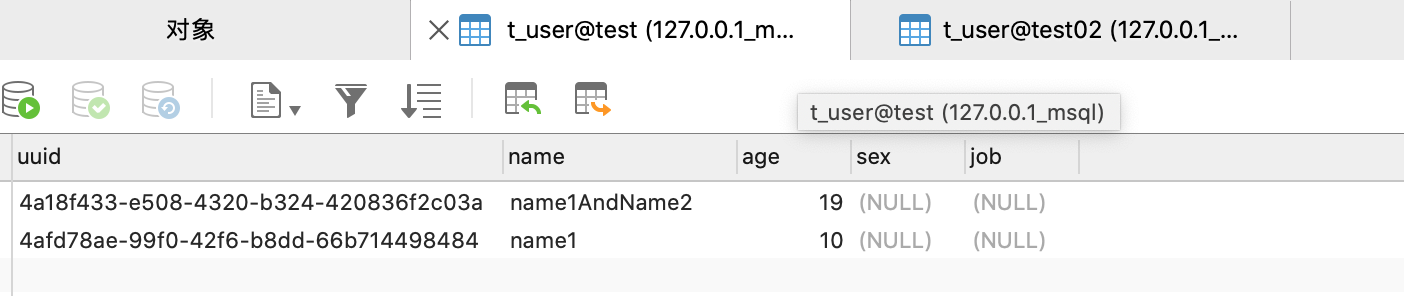

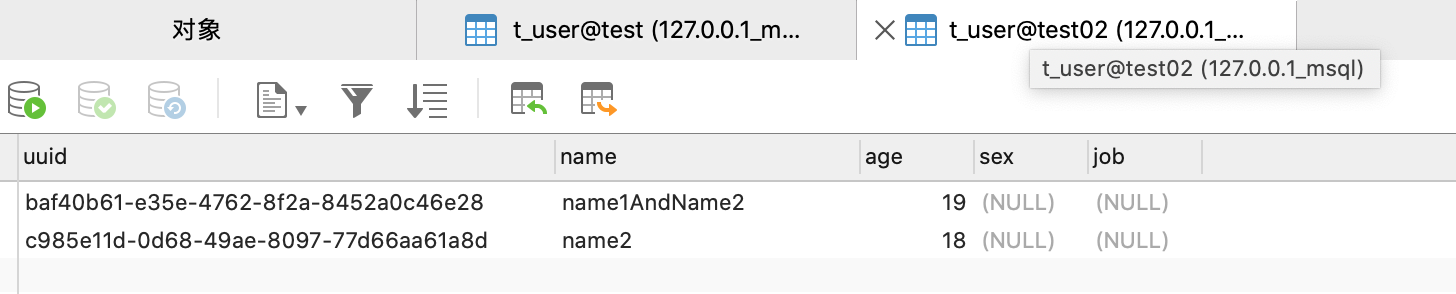

运行后，会发现两个数据库均添加了数据：
