canal先全量-后增量的同步模拟实战

canal高可用和mysql节点自动切换的部署，可以参考我的这篇文章

1. 全量数据导出同步 1.1 active mysql查看

因为我们部署了mysql节点自动切换，我们需要查看现在同步的是哪一台mysql服务器

1. 先查看example实例运行的服务器

[zk: canal1:2181,canal2:2181,canal3:2181(CONNECTED) 0] get /otter/canal/destinations/example/running
{"active":true,"address":"192.168.23.31:11111"}
[zk: canal1:2181,canal2:2181,canal3:2181(CONNECTED) 1]

可以看到example实例运行在canal1上 2. 然后我们查看canal1的example日志

[root@canal1 example]#
[root@canal1 example]# pwd
/root/canal.deployer-1.1.5/logs/example
[root@canal1 example]#
[root@canal1 example]#
[root@canal1 example]# tail example.log
......省略部分......
2021-06-25 09:29:07.624 [destination = example , address = canal2/192.168.23.32:3306 , EventParser] WARN  c.a.o.c.p.inbound.mysql.rds.RdsBinlogEventParserProxy - prepare to find start position by switch ::1624526107000
2021-06-25 09:29:08.770 [destination = example , address = canal2/192.168.23.32:3306 , EventParser] WARN  c.a.o.c.p.inbound.mysql.rds.RdsBinlogEventParserProxy - ---> find start position successfully, EntryPosition[included=false,journalName=mysql-bin.000001,position=3348,serverId=2,gtid=,timestamp=1624459434000] cost : 1104ms , the next step is binlog dump
[root@canal1 example]#
[root@canal1 example]#

可以看到当前active的mysql为canal2

1.2 canal2 mysql数据的全量导出 1.2.1. 我们先看mysql的数据

[root@canal2 ~]# mysql -u root -pRoot_123
mysql: [Warning] Using a password on the command line interface can be insecure.
Welcome to the MySQL monitor.  Commands end with ; or \g.
Your MySQL connection id is 22
Server version: 8.0.25 MySQL Community Server - GPL

Copyright (c) 2000, 2021, Oracle and/or its affiliates.

Oracle is a registered trademark of Oracle Corporation and/or its
affiliates. Other names may be trademarks of their respective
owners.

Type 'help;' or '\h' for help. Type '\c' to clear the current input statement.

mysql>
mysql> show databases;
+--------------------+
| Database           |
+--------------------+
| db1                |
| db2                |
| information_schema |
| mysql              |
| performance_schema |
| sys                |
+--------------------+
6 rows in set (0.01 sec)

mysql> use db1;
Reading table information for completion of table and column names
You can turn off this feature to get a quicker startup with -A

Database changed
mysql> show tables;
+---------------+
| Tables_in_db1 |
+---------------+
| tb1_1         |
| tb1_2         |
+---------------+
2 rows in set (0.00 sec)

mysql> select * from tb1_1;
+------+-------+--------+
| idA  | nameA | scoreA |
+------+-------+--------+
|    1 | 1     |   1.10 |
|    2 | 2     |   2.20 |
|    3 | 3     |   3.30 |
+------+-------+--------+
3 rows in set (0.00 sec)

mysql> select * from tb1_2;
+------+-------+------+
| idA  | nameA | ageA |
+------+-------+------+
|    1 | 1     |    1 |
|    2 | 2     |    2 |
|    3 | 3     |    3 |
+------+-------+------+
3 rows in set (0.00 sec)

mysql> use db2;
Reading table information for completion of table and column names
You can turn off this feature to get a quicker startup with -A

Database changed
mysql> show tables;
+---------------+
| Tables_in_db2 |
+---------------+
| tb2_1         |
| tb2_2         |
+---------------+
2 rows in set (0.00 sec)

mysql> select * from tb2_1;
+------+-------+--------+
| idB  | nameB | scoreB |
+------+-------+--------+
|    1 | 1     |   1.10 |
|    2 | 2     |   2.20 |
|    3 | 3     |   3.30 |
+------+-------+--------+
3 rows in set (0.00 sec)

mysql> select * from tb2_2;
+------+-------+------+
| idB  | nameB | ageB |
+------+-------+------+
|    1 | 1     |    1 |
|    2 | 2     |    2 |
|    3 | 3     |    3 |
+------+-------+------+
3 rows in set (0.00 sec)

mysql>

1.2.2. 导出mysql的全量数据

[root@canal2 ~]#
[root@canal2 ~]# mysqldump -u root -pRoot_123 --databases db1 db2 --flush-logs --lock-all-tables --master-data=1 --column_statistics=0 --ignore-table=db1.tb1 --ignore-table=db2.tb1 > /root/db.sql
mysqldump: [Warning] Using a password on the command line interface can be insecure.
[root@canal2 ~]#

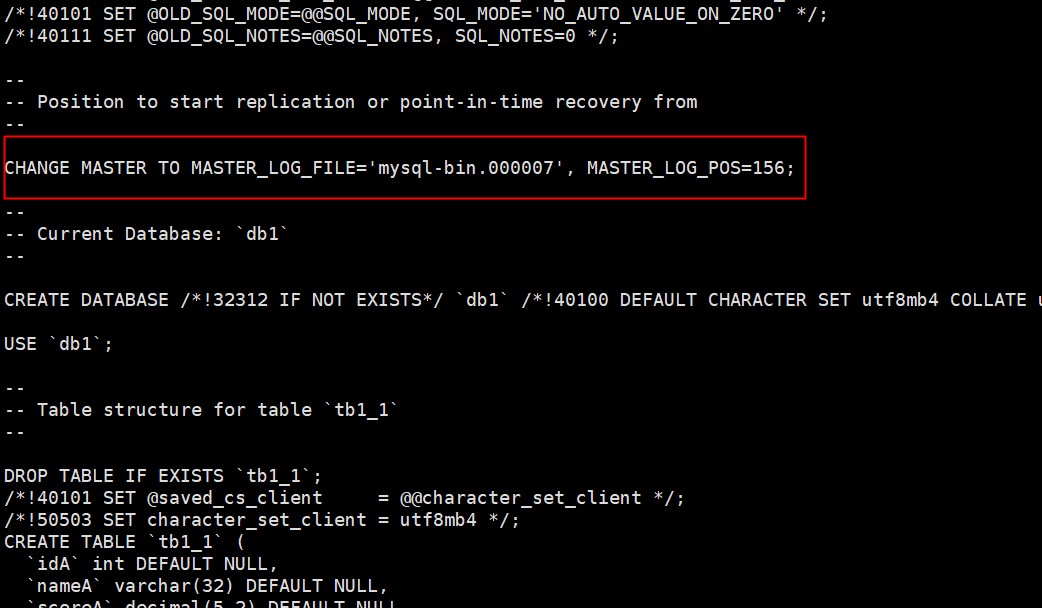

查看db.sql中，刷新后的binlog日志文件名和position, 并把红框那行注释

1.2.3. 将全量数据db.sql导入到canal3上的mysql

我们这里采用mysql来做练习，mysql可以直接运行命令source xxx.sql进行数据导入；如果是其它的数据库，可以先导入到中间mysql数据库，然后再用kettle等ETL工具，或自己写代码实现都可以，导入到自己想要的目标数据库

canal3上的mysql安装可以参考mysql 8.0.25安装

将db.sql上传到canal3, 进行全量导入

[root@canal3 ~]#
[root@canal3 ~]# ls
anaconda-ks.cfg  apache-zookeeper-3.6.3-bin  canal.deployer-1.1.5  db.sql  jdk1.8.0_291  mysql-8.0.25
[root@canal3 ~]#
[root@canal3 ~]# pwd
/root
[root@canal3 ~]#
[root@canal3 ~]# mysql -u root -pRoot_123
mysql: [Warning] Using a password on the command line interface can be insecure.
Welcome to the MySQL monitor.  Commands end with ; or \g.
Your MySQL connection id is 15
Server version: 8.0.25 MySQL Community Server - GPL

Copyright (c) 2000, 2021, Oracle and/or its affiliates.

Oracle is a registered trademark of Oracle Corporation and/or its
affiliates. Other names may be trademarks of their respective
owners.

Type 'help;' or '\h' for help. Type '\c' to clear the current input statement.

mysql> source db.sql;
Query OK, 0 rows affected (0.00 sec)

Query OK, 0 rows affected (0.01 sec)

......省略部分......

Query OK, 0 rows affected (0.00 sec)

Query OK, 0 rows affected (0.00 sec)

mysql>
mysql> show databases;
+--------------------+
| Database           |
+--------------------+
| db1                |
| db2                |
| information_schema |
| mysql              |
| performance_schema |
| sys                |
+--------------------+
6 rows in set (0.00 sec)

mysql>

2. example instance的配置 2.1 修改conf/canal.properties

此步骤3台服务器同步修改， 内容如下

canal.destinations =

这里我们取消默认的example, 改用自动扫描，会扫描conf目录下的文件夹名(除了metrics和spring)，来做example实例, 一般一个example实例对应一个数据库的同步

然后重启canal服务

2.2 删除conf/example，建立新的example实例

在canal1的/root目录下准备两个example实例，步骤如下

[root@canal1 conf]# ls
canal_local.properties  canal.properties  example  logback.xml  metrics  spring
[root@canal1 conf]#
[root@canal1 conf]# pwd
/root/canal.deployer-1.1.5/conf
[root@canal1 conf]#
[root@canal1 conf]# cp -r example/ ~
[root@canal1 conf]#
[root@canal1 conf]# cd ~
[root@canal1 ~]#
[root@canal1 ~]# mv example/ example_db1
[root@canal1 ~]#
[root@canal1 ~]# cp -r example_db1/ example_db2
[root@canal1 ~]#
[root@canal1 ~]# ll example_db1/
总用量 164
-rw-r--r--. 1 root root 163840 6月  25 11:01 h2.mv.db
-rwxr-xr-x. 1 root root   2621 6月  25 11:01 instance.properties
[root@canal1 ~]#
[root@canal1 ~]# rm example_db1/h2.mv.db -rf
[root@canal1 ~]#
[root@canal1 ~]# ll example_db2/
总用量 164
-rw-r--r--. 1 root root 163840 6月  25 11:02 h2.mv.db
-rwxr-xr-x. 1 root root   2621 6月  25 11:02 instance.properties
[root@canal1 ~]#
[root@canal1 ~]# rm example_db2/h2.mv.db -rf
[root@canal1 ~]#

example_db1/instance.properties设置了binlog的读取起始点，且只同步db1数据库的数据，内容如下

[root@canal1 ~]#
[root@canal1 ~]# cat example_db1/instance.properties
#################################################
## mysql serverId , v1.0.26+ will autoGen
# canal2为1232，canal3为1233
canal.instance.mysql.slaveId=1231

# enable gtid use true/false
canal.instance.gtidon=false

# position info
canal.instance.master.address=canal2:3306
canal.instance.master.journal.name=mysql-bin.000007
canal.instance.master.position=156
canal.instance.master.timestamp=
canal.instance.master.gtid=

# rds oss binlog
canal.instance.rds.accesskey=
canal.instance.rds.secretkey=
canal.instance.rds.instanceId=

# table meta tsdb info
canal.instance.tsdb.enable=true
#canal.instance.tsdb.url=jdbc:mysql://127.0.0.1:3306/canal_tsdb
#canal.instance.tsdb.dbUsername=canal
#canal.instance.tsdb.dbPassword=canal

canal.instance.standby.address = canal1:3306
#canal.instance.standby.journal.name =
#canal.instance.standby.position =
#canal.instance.standby.timestamp =
#canal.instance.standby.gtid=

# username/password
canal.instance.dbUsername=canal
canal.instance.dbPassword=Canal_123
canal.instance.connectionCharset = UTF-8
# enable druid Decrypt database password
canal.instance.enableDruid=false
#canal.instance.pwdPublicKey=MFwwDQYJKoZIhvcNAQEBBQADSwAwSAJBALK4BUxdDltRRE5/zXpVEVPUgunvscYFtEip3pmLlhrWpacX7y7GCMo2/JM6LeHmiiNdH1FWgGCpUfircSwlWKUCAwEAAQ==

# table regex
canal.instance.filter.regex=db1\\.tb\\d_\\d
# table black regex
canal.instance.filter.black.regex=mysql\\.slave_.*
# table field filter(format: schema1.tableName1:field1/field2,schema2.tableName2:field1/field2)
#canal.instance.filter.field=test1.t_product:id/subject/keywords,test2.t_company:id/name/contact/ch
# table field black filter(format: schema1.tableName1:field1/field2,schema2.tableName2:field1/field2)
#canal.instance.filter.black.field=test1.t_product:subject/product_image,test2.t_company:id/name/contact/ch

# mq config
canal.mq.topic=example
# dynamic topic route by schema or table regex
#canal.mq.dynamicTopic=mytest1.user,mytest2\\..*,.*\\..*
canal.mq.partition=0
# hash partition config
#canal.mq.partitionsNum=3
#canal.mq.partitionHash=test.table:id^name,.*\\..*
#canal.mq.dynamicTopicPartitionNum=test.*:4,mycanal:6
#################################################


# 需要开启心跳检查
canal.instance.detecting.enable = true
# 心跳检查sql
canal.instance.detecting.sql = select 1
# 心跳检查频率
canal.instance.detecting.interval.time = 3
# 心跳检查失败次数阀值，超过该阀值后会触发mysql链接切换，比如切换到standby机器上继续消费binlog
canal.instance.detecting.retry.threshold = 3
# 心跳检查超过失败次数阀值后，是否开启master/standby的切换
canal.instance.detecting.heartbeatHaEnable = true
[root@canal1 ~]#

example_db2/instance.properties设置了binlog的读取起始点，且只同步db2数据库的数据，内容如下

[root@canal1 ~]#
[root@canal1 ~]# cat example_db2/instance.properties
#################################################
## mysql serverId , v1.0.26+ will autoGen
# canal2为1242，canal3为1243
canal.instance.mysql.slaveId=1241

# enable gtid use true/false
canal.instance.gtidon=false

# position info
canal.instance.master.address=canal2:3306
canal.instance.master.journal.name=mysql-bin.000007
canal.instance.master.position=156
canal.instance.master.timestamp=
canal.instance.master.gtid=

# rds oss binlog
canal.instance.rds.accesskey=
canal.instance.rds.secretkey=
canal.instance.rds.instanceId=

# table meta tsdb info
canal.instance.tsdb.enable=true
#canal.instance.tsdb.url=jdbc:mysql://127.0.0.1:3306/canal_tsdb
#canal.instance.tsdb.dbUsername=canal
#canal.instance.tsdb.dbPassword=canal

canal.instance.standby.address = canal1:3306
#canal.instance.standby.journal.name =
#canal.instance.standby.position =
#canal.instance.standby.timestamp =
#canal.instance.standby.gtid=

# username/password
canal.instance.dbUsername=canal
canal.instance.dbPassword=Canal_123
canal.instance.connectionCharset = UTF-8
# enable druid Decrypt database password
canal.instance.enableDruid=false
#canal.instance.pwdPublicKey=MFwwDQYJKoZIhvcNAQEBBQADSwAwSAJBALK4BUxdDltRRE5/zXpVEVPUgunvscYFtEip3pmLlhrWpacX7y7GCMo2/JM6LeHmiiNdH1FWgGCpUfircSwlWKUCAwEAAQ==

# table regex
canal.instance.filter.regex=db2\\.tb\\d_\\d
# table black regex
canal.instance.filter.black.regex=mysql\\.slave_.*
# table field filter(format: schema1.tableName1:field1/field2,schema2.tableName2:field1/field2)
#canal.instance.filter.field=test1.t_product:id/subject/keywords,test2.t_company:id/name/contact/ch
# table field black filter(format: schema1.tableName1:field1/field2,schema2.tableName2:field1/field2)
#canal.instance.filter.black.field=test1.t_product:subject/product_image,test2.t_company:id/name/contact/ch

# mq config
canal.mq.topic=example
# dynamic topic route by schema or table regex
#canal.mq.dynamicTopic=mytest1.user,mytest2\\..*,.*\\..*
canal.mq.partition=0
# hash partition config
#canal.mq.partitionsNum=3
#canal.mq.partitionHash=test.table:id^name,.*\\..*
#canal.mq.dynamicTopicPartitionNum=test.*:4,mycanal:6
#################################################


# 需要开启心跳检查
canal.instance.detecting.enable = true
# 心跳检查sql
canal.instance.detecting.sql = select 1
# 心跳检查频率
canal.instance.detecting.interval.time = 3
# 心跳检查失败次数阀值，超过该阀值后会触发mysql链接切换，比如切换到standby机器上继续消费binlog
canal.instance.detecting.retry.threshold = 3
# 心跳检查超过失败次数阀值后，是否开启master/standby的切换
canal.instance.detecting.heartbeatHaEnable = true
[root@canal1 ~]#

删除3台服务器的conf/example目录，并将example_db1和example_db2放到3台服务器的conf目录下，并修改canal2和canal3的instance.properties的canal.instance.mysql.slaveId参数

3. client端代码的开发 3.1 对db1和db2的数据进行修改

[root@canal2 ~]# mysql -u root -pRoot_123
mysql: [Warning] Using a password on the command line interface can be insecure.
Welcome to the MySQL monitor.  Commands end with ; or \g.
Your MySQL connection id is 22
Server version: 8.0.25 MySQL Community Server - GPL

Copyright (c) 2000, 2021, Oracle and/or its affiliates.

Oracle is a registered trademark of Oracle Corporation and/or its
affiliates. Other names may be trademarks of their respective
owners.

Type 'help;' or '\h' for help. Type '\c' to clear the current input statement.

mysql>
mysql> insert into db1.tb1_1 values(4,'4',4.4),(5,'5',5.5);
Query OK, 2 rows affected (0.00 sec)
Records: 2  Duplicates: 0  Warnings: 0

mysql> delete from db1.tb1_2 where idA in (2,3);
Query OK, 2 rows affected (0.00 sec)

mysql> update db2.tb2_1 set scoreB=2.22 where idB=2;
Query OK, 1 row affected (0.00 sec)
Rows matched: 1  Changed: 1  Warnings: 0

mysql> update db2.tb2_1 set scoreB=3.33 where idB=3;
Query OK, 1 row affected (0.00 sec)
Rows matched: 1  Changed: 1  Warnings: 0

mysql> alter table db2.tb2_2 drop column ageB;
Query OK, 0 rows affected (0.04 sec)
Records: 0  Duplicates: 0  Warnings: 0

mysql>

3.2 pom.xml添加的依赖

com.alibaba.ottercanal.client1.1.5com.alibaba.ottercanal.protocol1.1.5mysqlmysql-connector-java8.0.25

3.3 重复测试的脚本

因为测试的时候，有时候会删除client在zookeeper的消费position, 和让canal server重新从instance.properties设置的position开始消费，所以需要重启canal server

[root@canal1 ~]#
[root@canal1 ~]# pwd
/root
[root@canal1 ~]#
[root@canal1 ~]# cat example_db1_repeat_test.sh
#!/usr/bin/env bash

# 删除zk的canal client position
/root/apache-zookeeper-3.6.3-bin/bin/zkCli.sh -server canal1:2181,canal2:2181,canal3:2181 delete /otter/canal/destinations/example_db1/1001/cursor
/root/apache-zookeeper-3.6.3-bin/bin/zkCli.sh -server canal1:2181,canal2:2181,canal3:2181 delete /otter/canal/destinations/example_db2/1001/cursor

canal_servers=('canal1' 'canal2' 'canal3')

# 重启3台服务的canal server
for canal_server in ${canal_servers[@]}
do
ssh root@${canal_server} << begin2end
source /root/.bashrc
/root/canal.deployer-1.1.5/bin/restart.sh
exit
begin2end
done


[root@canal1 ~]#

3.4 db_sync.java开发

这里我们采用tcp解析binlog的方式来同步，也可以用kafka的模式，或者采用adpter适配器的方式，大致原理都是一样的

执行db2数据库的同步，需注释db1的参数，开启db2的参数

import com.alibaba.otter.canal.client.CanalConnector; import com.alibaba.otter.canal.client.CanalConnectors; import com.alibaba.otter.canal.protocol.CanalEntry; import com.alibaba.otter.canal.protocol.Message; import com.google.protobuf.InvalidProtocolBufferException; import java.sql.Connection; import java.sql.DriverManager; import java.sql.SQLException; import java.sql.Statement; import java.util.ArrayList; import java.util.List; public class db_sync { public static void main(String[] args) { // db1的参数 String destination="example_db1"; String subscribe="db1\\.tb\\d_\\d"; String db="db1"; // db2的参数 // String destination = "example_db2"; // String subscribe = "db2\\.tb\\d_\\d"; // String db="db2"; CanalConnector connector = CanalConnectors.newClusterConnector("192.168.23.31:2181,192.168.23.32:2181,192.168.23.33:2181", destination, "", ""); Connection mysql_conn = null; Statement st = null; try { mysql_conn = DriverManager.getConnection("jdbc:mysql://192.168.23.33:3306/"+db+"?useSSL=false&serverTimezone=UTC&useUnicode=true&characterEncoding=UTF-8", "root", "Root_123"); st = mysql_conn.createStatement(); connector.connect(); connector.subscribe(subscribe); // 回滚上次未提交完成的batch connector.rollback(); while (true) { Message message = connector.getWithoutAck(5000); long batchId = message.getId(); int batchSize = message.getEntries().size(); if (!(batchId == -1 || batchSize == 0)) { try { List<CanalEntry.Entry> entries = message.getEntries(); dealEntrys(entries, st); // st是地址传递 connector.ack(batchId); } catch (Exception e) { connector.rollback(batchId); e.printStackTrace(); } } try { Thread.sleep(1000L); } catch (InterruptedException e) { e.printStackTrace(); } } } catch (SQLException e) { e.printStackTrace(); } finally { connector.disconnect(); try { mysql_conn.close(); } catch (SQLException e) { e.printStackTrace(); } } } public static void dealEntrys(List<CanalEntry.Entry> entries, Statement st) { // 循环处理事务 for (CanalEntry.Entry entry : entries) { if (entry.getEntryType() == CanalEntry.EntryType.TRANSACTIONBEGIN || entry.getEntryType() == CanalEntry.EntryType.TRANSACTIONEND) { continue; } CanalEntry.RowChange rowChange = null; try { rowChange = CanalEntry.RowChange.parseFrom(entry.getStoreValue()); } catch (InvalidProtocolBufferException e) { e.printStackTrace(); } CanalEntry.EventType eventType = rowChange.getEventType(); String schemaName = entry.getHeader().getSchemaName(); String tableName = entry.getHeader().getTableName(); System.out.println(String.format("binlog[%s:%s], name[%s.%s], eventType: %s", entry.getHeader().getLogfileName(), entry.getHeader().getLogfileOffset(), schemaName, tableName, eventType )); // 表结构更改的同步 if (eventType == CanalEntry.EventType.ALTER) { if (rowChange.getIsDdl()) { try { System.out.println(rowChange.getSql()); st.execute(rowChange.getSql()); } catch (SQLException e) { e.printStackTrace(); } } } // 循环处理每条数据；比如一个insert命令，可以插入多条数据 for (CanalEntry.RowData rowData : rowChange.getRowDatasList()) { if (eventType == CanalEntry.EventType.INSERT) { printColumn(rowData.getAfterColumnsList()); insertData(rowData.getAfterColumnsList(), st, schemaName, tableName); } else if (eventType == CanalEntry.EventType.DELETE) { printColumn(rowData.getBeforeColumnsList()); deleteData(rowData.getBeforeColumnsList(), st, schemaName, tableName); } else { System.out.println("<<<<<<<<<
