Servlet3 过滤器 Filer

Filter简介

Filter(过滤器)的基本功能就是对与url匹配的所有的请求进行拦截，从而在 Servlet 进行响应处理的前后实现一些特殊的功能。

Filter 程序可以拦截 Jsp, Servlet, 静态图片文件和静态 html 文件。

Filter 程序是一个实现了 Filter 接口的 Java 类，与 Servlet 程序相似，它由 Servlet 容器进行调用和执行。

在 Servlet API 中定义了三个Filter, FilterChain, FilterConfig接口类来供开发人员编写 Filter 程序。

Filter 的基本工作原理：

1. 当注册了一个 Filter 来对某个 Servlet 程序进行拦截处理时，这个 Filter 就成了 Servlet 容器与该 Servlet 程序的通信线路上的一道关卡，该 Filter 可以对 Servlet 容器发送给Servlet 程序的请求和 Servlet 程序回送给 Servlet 容器的相应进行拦截，可以决定是否将请求继续传递给 Servlet 程序，以及对请求和相应信息是否进行修改。
2. 在一个 web 应用程序中可以注册多个 Filter 程序，每个 Filter 程序都可以对一个或一组 Servlet 程序进行拦截。
3. 若有多个 Filter 程序对某个 Servlet 程序的访问过程进行拦截，当针对该 Servlet 的访问请求到达时，web 容器将把这多个 Filter 程序组合成一个 Filter 链(过滤器链)。

单个过滤器 示例1：

拦截所有的请求，比如：http://localhost:8080/bb/fds、http://localhost:8080/b、http://localhost:8080/a.jsp……

@WebFilter(urlPatterns = "/*")
public class AuthFilter implements Filter {
    public void destroy() {
        System.out.println("destroy");
    }

    public void doFilter(ServletRequest req, ServletResponse resp, FilterChain chain) throws ServletException, IOException {
        System.out.println("do11");
        chain.doFilter(req, resp);
        System.out.println("do22");
    }

    public void init(FilterConfig config) throws ServletException {
        System.out.println("init");
    }

}

示例2：

拦截以aa开始的所有的请求，比如：http://localhost:8080/aa/fds、http://localhost:8080/aa/b.jsp，但不能拦截http://localhost:8080/bb/aa

@WebFilter(urlPatterns = "/aa/*")
public class AuthFilter implements Filter {
    public void destroy() {
        System.out.println("destroy");
    }

    public void doFilter(ServletRequest req, ServletResponse resp, FilterChain chain) throws ServletException, IOException {
        System.out.println("do11");
        chain.doFilter(req, resp);
        System.out.println("do22");
    }

    public void init(FilterConfig config) throws ServletException {
        System.out.println("init");
    }

}

示例2：

拦截以aa或bb开始的所有的请求，比如：http://localhost:8080/aa/fds、http://localhost:8080/bb/b.jsp

@WebFilter(urlPatterns = {"/aa/*","/bb/*"})
public class AuthFilter implements Filter {
    public void destroy() {
        System.out.println("destroy");
    }

    public void doFilter(ServletRequest req, ServletResponse resp, FilterChain chain) throws ServletException, IOException {
        System.out.println("do11");
        chain.doFilter(req, resp);
        System.out.println("do22");
    }

    public void init(FilterConfig config) throws ServletException {
        System.out.println("init");
    }

}

示例3：基于Filter与Session的用户登录判断

• 项目目录结构

• aa.html





      机密文件


      登录之后才能访问的页面




• bb.png 一张普通的图片

• login.jsp




      login



          用户名：
          密码：






• LoginServlet.java

  @WebServlet(urlPatterns = "/loginServlet")
  public class LoginServlet extends HttpServlet {
      protected void doPost(HttpServletRequest request, HttpServletResponse response) throws ServletException, IOException {
          String uname = request.getParameter("uname");
          String upwd = request.getParameter("upwd");

          if ("zhangsan".equals(uname) && "1234".equals(upwd)) {//如果登录成功
              HttpSession session = request.getSession(); //获取Session
              session.setMaxInactiveInterval(30*60); //设置session的有效时间为60s
              session.setAttribute("user",uname);//将用户信息放到Session中

              Object aim = request.getSession().getAttribute("aim");//Filter拦截的url
              System.out.println("*** "+aim);

              request.getRequestDispatcher(aim.toString()).forward(request, response);
          }
      }
  }


• AuthFilter.java

  @WebFilter(urlPatterns = "/sec/*")
  public class AuthFilter implements Filter {
      public void destroy() {
      }

      public void doFilter(ServletRequest req, ServletResponse resp, FilterChain chain) throws ServletException, IOException {
          HttpServletRequest request = (HttpServletRequest) req;
          HttpServletResponse response = (HttpServletResponse) resp;

          String aim = request.getRequestURI();
          String queryString = request.getQueryString();
          if (queryString != null) {
              aim += "?" + queryString;
          }
          HttpSession session = request.getSession();

          session.setAttribute("aim", aim);

          Object user = session.getAttribute("user");
          if (user == null) { //如果用户没有登录，跳转到登录页面
              request.getRequestDispatcher("/login.jsp").forward(request, response);
              return; //如果有过滤器链，不再执行后面的过滤器
          }
          chain.doFilter(req, resp);
          System.out.println("haha");
      }

      public void init(FilterConfig config) throws ServletException {

      }

  }


• DemoServlet.java

  @WebServlet(urlPatterns = "/sec/demoServlet")
  public class DemoServlet extends HttpServlet {
      @Override
      protected void doPost(HttpServletRequest req, HttpServletResponse resp) throws ServletException, IOException {
          doGet(req,resp);
      }
      @Override
      protected void doGet(HttpServletRequest request, HttpServletResponse response) throws ServletException, IOException {
          request.getRequestDispatcher("/WEB-INF/sec/aa.html").forward(request,response);
      }
  }


• DemoServlet2.java

  @WebServlet(urlPatterns = "/sec/demoServlet2")
  public class DemoServlet2 extends HttpServlet {
      @Override
      protected void doGet(HttpServletRequest request, HttpServletResponse response) throws ServletException, IOException {
          request.getRequestDispatcher("/WEB-INF/sec/bb.png").forward(request,response);
      }

      @Override
      protected void doPost(HttpServletRequest req, HttpServletResponse resp) throws ServletException, IOException {
          doGet(req,resp);
      }
  }


• 运行

1. 请求http://localhost:8080/sec/demoServlet2，进入用户登录页面

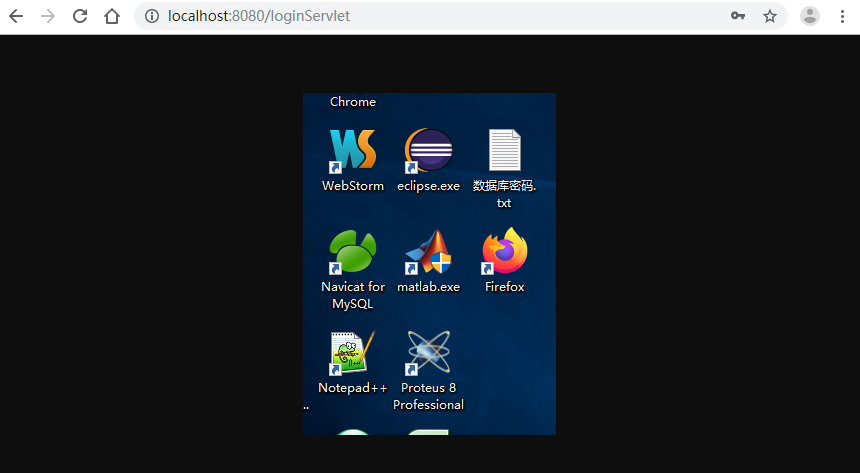

2. 输入用户名密码，单击按钮，结果：

过滤器链 示例1：

• EmojiFilter

  @WebFilter(urlPatterns = "/*")
  public class EmojiFilter implements Filter {
      public void destroy() {
          System.out.println("EmojiFilter destroy");
      }

      public void doFilter(ServletRequest req, ServletResponse resp, FilterChain chain) throws ServletException, IOException {
          System.out.println("EmojiFilter doFilter before");
          chain.doFilter(req, resp);
          System.out.println("EmojiFilter doFilter after");
      }

      public void init(FilterConfig config) throws ServletException {
          System.out.println("EmojiFilter init");
      }

  }


• HtmlFilter

  @WebFilter(urlPatterns = "/*")
  public class HtmlFilter implements Filter {
      public void destroy() {
          System.out.println("HtmlFilter destroy");
      }

      public void doFilter(ServletRequest req, ServletResponse resp, FilterChain chain) throws ServletException, IOException {
          System.out.println("HtmlFilter doFilter before");
          chain.doFilter(req, resp);
          System.out.println("HtmlFilter doFilter after");
      }

      public void init(FilterConfig config) throws ServletException {
          System.out.println("HtmlFilter init");
      }

  }


• SensitiveFilter

  @WebFilter(urlPatterns = "/*")
  public class SensitiveFilter implements Filter {
      public void destroy() {
          System.out.println("SensitiveFilter destroy");
      }

      public void doFilter(ServletRequest req, ServletResponse resp, FilterChain chain) throws ServletException, IOException {
          System.out.println("SensitiveFilter doFilter before");
          chain.doFilter(req, resp);
          System.out.println("SensitiveFilter doFilter after");
      }

      public void init(FilterConfig config) throws ServletException {
          System.out.println("SensitiveFilter init");
      }

  }


• DemoServlet

  @WebServlet(urlPatterns = "/demoServlet")
  public class DemoServlet extends HttpServlet {
      @Override
      protected void doGet(HttpServletRequest request, HttpServletResponse response) throws ServletException, IOException {
          System.out.println("hahaha......");
      }
  }

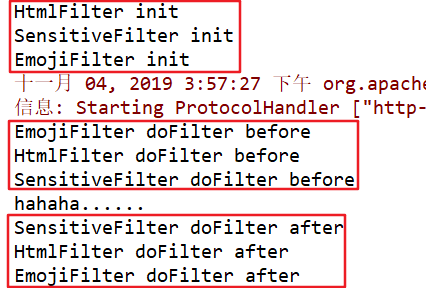

运行：在浏览器中请求http://localhost:8080/demoServlet，控制台输出结果：
