SpringBoot 结合 Vue3 实现验证码功能

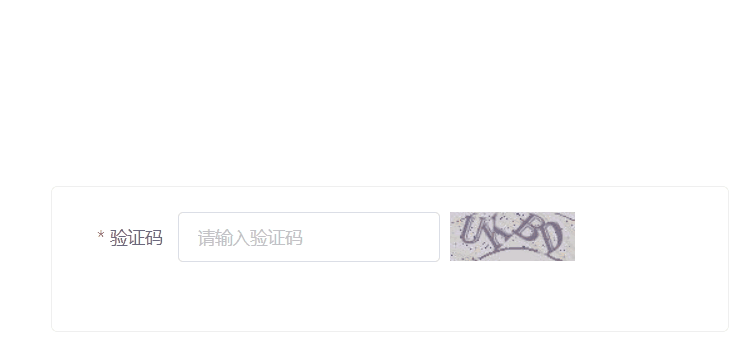

效果

SpringBoot后台代码

@RestController
@RequestMapping("/user")
public class UserController {
    @Resource
    private UserService userService;

    @RequestMapping("/getVerifyCode")
    public void getVerifyCode(HttpSession session, HttpServletResponse response) throws IOException {
        //生成验证码，6位
        String verifyCode = VerifyCodeUtils.generateVerifyCode(4);
        //验证码放入session
        session.setAttribute("verifyCode", verifyCode);
        //验证码存入图片
        response.setContentType("image/png");
        ServletOutputStream outputStream = response.getOutputStream();
        VerifyCodeUtils.outputImage(100, 39, outputStream, verifyCode);
    }

    @GetMapping("/checkVerifyCode")
    public Result checkVerifyCode(String code, HttpSession session) {
        String tmp = (String) session.getAttribute("verifyCode");
        if (tmp == null || tmp.length() == 0) {
            return ResultUtil.fail(ResultEnum.INTERNAL_SERVER_ERROR);
        }
        if (tmp.equalsIgnoreCase(code)) {
            return ResultUtil.success(ResultEnum.CHECK_CODE_SUCCESS);
        } else {
            return ResultUtil.fail(ResultEnum.CHECK_CODE_ERROR);
        }
    }
}

上面代码中的工具类VerifyCodeUtils的源代码请参考博客：好用的验证码工具类VerifyCodeUtils

axios工具类

// 二次封装axios
import axios from 'axios'
import qs from 'qs'
import {ElLoading, ElNotification} from 'element-plus'

// 根据环境变量区分接口默认地址（前缀）
axios.defaults.baseURL = 'http://127.0.0.1/blog'
// 请求超时时间
axios.defaults.timeout = 10000
// CROS跨域是否允许凭证
axios.defaults.withCredentials = true

/**
 * Get请求
 * @param url 请求地址
 * @param params 参数
 * @returns {Promise}
 */
export function get(url: string, params: any = {}) {
  return new Promise((resolve, reject) => {
    axios.get(url, {
      params: params
    }).then(res => {
      resolve(res.data)
    }).catch(error => {
      reject(error.data)
    })
  })
}

// 获取验证码
export const checkVerifyCode = (url: string, params: Record) => {
  return new Promise((resolve, reject) => {
    axios.defaults.headers['Content-Type'] = 'application/x-www-form-urlencoded;charset=UTF-8' // 默认
    axios.get(url, qs.stringify(params))
      .then(res => {
        resolve(res.data)
      })
      .catch(err => {
        reject(err.data)
      })
  })
}

vue页面

    个人博客后台管理：用户登录









import {reactive} from 'vue'
import {ElMessage} from 'element-plus'
import axios from 'axios'

export default {
  setup() {
    let user = reactive({
      verifyCode: ''
    })
    let checkVerifyCode = () => {
      axios.checkVerifyCode({
        code: user.verifyCode
      }).then((res: any) => {
        console.info(res)
        if (res.code !== 200) {
          ElMessage.error(res.msg)
        } else {
          ElMessage.success(res.msg)
        }
      })
    }
    return {
      user,
      checkVerifyCode,
      ruleLoginForm: {
        verifyCode: [
          {required: true, message: '请输入验证码', trigger: 'blur'},
          {min: 4, max: 4, message: '长度4个字符', trigger: 'blur'}
        ]
      }
    }
  }
}
