DL之VGG16：基于VGG16(Keras)利用Knifey-Spoony数据集对网络架构FineTuning
输出结果
False: input_1
False: block1_conv1
False: block1_conv2
False: block1_pool
False: block2_conv1
False: block2_conv2
False: block2_pool
False: block3_conv1
False: block3_conv2
False: block3_conv3
False: block3_pool
True: block4_conv1
True: block4_conv2
True: block4_conv3
True: block4_pool
True: block5_conv1
True: block5_conv2
True: block5_conv3
True: block5_pool

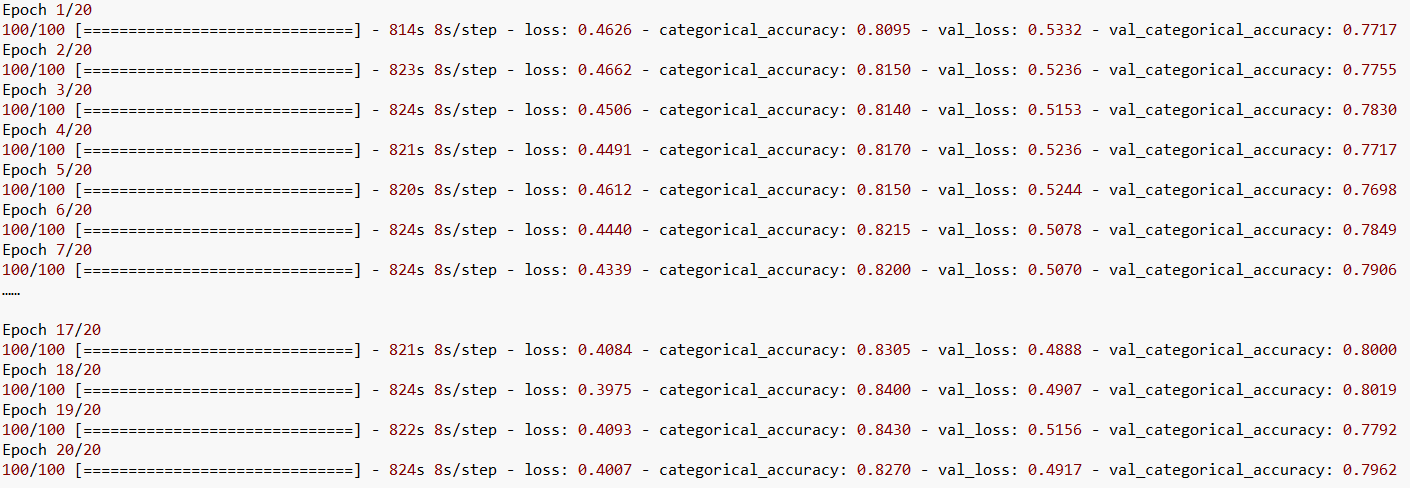

Epoch 1/20
100/100 [==============================] - 814s 8s/step - loss: 0.4626 - categorical_accuracy: 0.8095 - val_loss: 0.5332 - val_categorical_accuracy: 0.7717
Epoch 2/20
100/100 [==============================] - 823s 8s/step - loss: 0.4662 - categorical_accuracy: 0.8150 - val_loss: 0.5236 - val_categorical_accuracy: 0.7755
Epoch 3/20
100/100 [==============================] - 824s 8s/step - loss: 0.4506 - categorical_accuracy: 0.8140 - val_loss: 0.5153 - val_categorical_accuracy: 0.7830
Epoch 4/20
100/100 [==============================] - 821s 8s/step - loss: 0.4491 - categorical_accuracy: 0.8170 - val_loss: 0.5236 - val_categorical_accuracy: 0.7717
Epoch 5/20
100/100 [==============================] - 820s 8s/step - loss: 0.4612 - categorical_accuracy: 0.8150 - val_loss: 0.5244 - val_categorical_accuracy: 0.7698
Epoch 6/20
100/100 [==============================] - 824s 8s/step - loss: 0.4440 - categorical_accuracy: 0.8215 - val_loss: 0.5078 - val_categorical_accuracy: 0.7849
Epoch 7/20
100/100 [==============================] - 824s 8s/step - loss: 0.4339 - categorical_accuracy: 0.8200 - val_loss: 0.5070 - val_categorical_accuracy: 0.7906
Epoch 8/20
100/100 [==============================] - 820s 8s/step - loss: 0.4188 - categorical_accuracy: 0.8335 - val_loss: 0.5068 - val_categorical_accuracy: 0.7887
Epoch 9/20
100/100 [==============================] - 823s 8s/step - loss: 0.4307 - categorical_accuracy: 0.8345 - val_loss: 0.5192 - val_categorical_accuracy: 0.7792
Epoch 10/20
100/100 [==============================] - 820s 8s/step - loss: 0.4432 - categorical_accuracy: 0.8180 - val_loss: 0.4945 - val_categorical_accuracy: 0.7887
Epoch 11/20
100/100 [==============================] - 824s 8s/step - loss: 0.4171 - categorical_accuracy: 0.8295 - val_loss: 0.5012 - val_categorical_accuracy: 0.7887
Epoch 12/20
100/100 [==============================] - 820s 8s/step - loss: 0.4071 - categorical_accuracy: 0.8335 - val_loss: 0.5064 - val_categorical_accuracy: 0.7830
Epoch 13/20
100/100 [==============================] - 824s 8s/step - loss: 0.4164 - categorical_accuracy: 0.8200 - val_loss: 0.5065 - val_categorical_accuracy: 0.7811
Epoch 14/20
100/100 [==============================] - 825s 8s/step - loss: 0.4060 - categorical_accuracy: 0.8350 - val_loss: 0.5021 - val_categorical_accuracy: 0.7830
Epoch 15/20
100/100 [==============================] - 821s 8s/step - loss: 0.3948 - categorical_accuracy: 0.8390 - val_loss: 0.4985 - val_categorical_accuracy: 0.7925
Epoch 16/20
100/100 [==============================] - 824s 8s/step - loss: 0.3724 - categorical_accuracy: 0.8570 - val_loss: 0.4909 - val_categorical_accuracy: 0.7981
Epoch 17/20
100/100 [==============================] - 821s 8s/step - loss: 0.4084 - categorical_accuracy: 0.8305 - val_loss: 0.4888 - val_categorical_accuracy: 0.8000
Epoch 18/20
100/100 [==============================] - 824s 8s/step - loss: 0.3975 - categorical_accuracy: 0.8400 - val_loss: 0.4907 - val_categorical_accuracy: 0.8019
Epoch 19/20
100/100 [==============================] - 822s 8s/step - loss: 0.4093 - categorical_accuracy: 0.8430 - val_loss: 0.5156 - val_categorical_accuracy: 0.7792
Epoch 20/20
100/100 [==============================] - 824s 8s/step - loss: 0.4007 - categorical_accuracy: 0.8270 - val_loss: 0.4917 - val_categorical_accuracy: 0.7962设计思路
核心代码
conv_model.trainable = True
for layer in conv_model.layers:
# Boolean whether this layer is trainable.
trainable = ('block5' in layer.name or 'block4' in layer.name)
# Set the layer's bool.
layer.trainable = trainable
print_layer_trainable()
optimizer_fine = Adam(lr=1e-7)
FT_history = VGG16_TL_model.fit_generator(generator=generator_train,
epochs=epochs,
steps_per_epoch=steps_per_epoch,
class_weight=class_weight,
validation_data=generator_test,
validation_steps=steps_test)
print(FT_history)

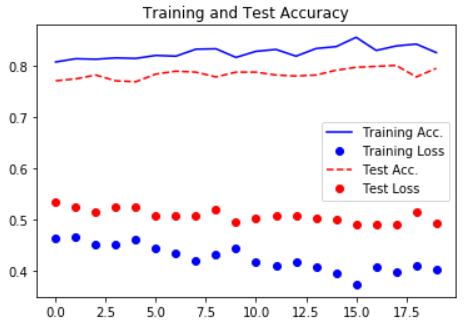

plot_training_history(FT_history) #
VGG16_FT_model_result = VGG16_TL_model.evaluate_generator(generator_test, steps=steps_test)
print("Test-set classification accuracy: {0:.2%}".format(VGG16_FT_model_result[1]))
example_errors()
