导读
本文讨论一个经典问题Prefix Sum（前缀和），也被称为Scan/Prefix Scan等。Scan 是诸如排序等重要问题的子问题，所以基本是进阶必学问题之一。
首先我们不严谨地定义这个问题，输入一个数组input[n]，计算新数组output[n], 使得对于任意元素output[i]都满足：
output[i] = input[0] + input[1] + ... input[i]

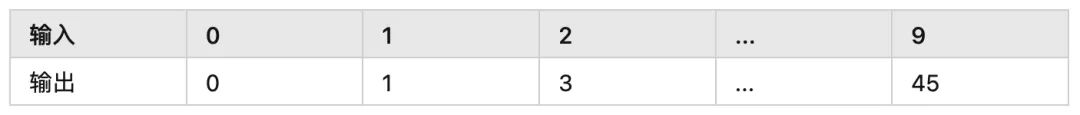

一个示例如下：
如果在CPU上我们可以简单地如下实现：
void PrefixSum(const int32_t* input, size_t n, int32_t* output) {
int32_t sum = 0;
for (size_t i = 0; i < n; ++i) {
sum += input[i];
output[i] = sum;
}
}
问题来了，如何并行？而且是几千个线程和谐地并行？这个问题里还有个明显的依赖，每个元素的计算都依赖之前的值。所以第一次看到这个问题的同学可能会觉得，这怎么可能并行？
而更进一步地，如何用CUDA并行，Warp级别怎么并行，Shared Memory能装下数据的情况怎么并行，Shared Memory装不下的情况如何并行等等。
2 ScanThenFan首先我们假设所有数据都可以存储到Global Memory中，因为更多的数据，核心逻辑也是类似的。
我们介绍的第一个方法称为ScanThenFan，也很符合直觉，如下：
-
将存储在Global Memory中的数据分为多个Parts，每个Part由一个Thread Block单独做内部的Scan，并将该Part的内部Sum存储到Global Memory中的PartSum数组中
-
对这个PartSum数组做Scan，我们使用BaseSum标识这个Scan后的数组
-
每个Part的每个元素都加上对应的BaseSum
如下图
3 Baseline
我们先不关注Block内如何Scan，在Block内先使用简单的单个线程处理，得到如下代码：
__global__ void ScanAndWritePartSumKernel(const int32_t* input, int32_t* part, int32_t* output, size_t n,
size_t part_num) {
for (size_t part_i = blockIdx.x; part_i < part_num; part_i += gridDim.x) {
// this part process input[part_begin:part_end]
// store sum to part[part_i], output[part_begin:part_end]
size_t part_begin = part_i * blockDim.x;
size_t part_end = min((part_i + 1) * blockDim.x, n);
if (threadIdx.x == 0) { // naive implemention
int32_t acc = 0;
for (size_t i = part_begin; i < part_end; ++i) {
acc += input[i];
output[i] = acc;
}
part[part_i] = acc;
}
}
}
__global__ void ScanPartSumKernel(int32_t* part, size_t part_num) {
int32_t acc = 0;
for (size_t i = 0; i < part_num; ++i) {
acc += part[i];
part[i] = acc;
}
}
__global__ void AddBaseSumKernel(int32_t* part, int32_t* output, size_t n,
size_t part_num) {
for (size_t part_i = blockIdx.x; part_i < part_num; part_i += gridDim.x) {
if (part_i == 0) {
continue;
}
int32_t index = part_i * blockDim.x + threadIdx.x;
if (index < n) {
output[index] += part[part_i - 1];
}
}
}
// for i in range(n):
// output[i] = input[0] + input[1] + ... + input[i]
void ScanThenFan(const int32_t* input, int32_t* buffer, int32_t* output,
size_t n) {
size_t part_size = 1024; // tuned
size_t part_num = (n + part_size - 1) / part_size;
size_t block_num = std::min(part_num, 128);
// use buffer[0:part_num] to save the metric of part
int32_t* part = buffer;
// after following step, part[i] = part_sum[i]
ScanAndWritePartSumKernel<<>>(input, part, output, n,
part_num);
// after following step, part[i] = part_sum[0] + part_sum[1] + ... part_sum[i]
ScanPartSumKernel<<<1, 1>>>(part, part_num);
// make final result
AddBaseSumKernel<<>>(part, output, n, part_num);
}
现在的代码里很多朴素实现，但我们先完成一个大框架，得到此时的耗时72390us作为一个Baseline。
4 Shared Memory接着，我们看ScanAndWritePartSumKernel函数，我们先做个简单的优化，将单个Part的数据先Load到Shared Memory中再做同样的简单逻辑，如下
__device__ void ScanBlock(int32_t* shm) {
if (threadIdx.x == 0) { // naive implemention
int32_t acc = 0;
for (size_t i = 0; i < blockDim.x; ++i) {
acc += shm[i];
shm[i] = acc;
}
}
__syncthreads();
}
__global__ void ScanAndWritePartSumKernel(const int32_t* input, int32_t* part,
int32_t* output, size_t n,
size_t part_num) {
extern __shared__ int32_t shm[];
for (size_t part_i = blockIdx.x; part_i < part_num; part_i += gridDim.x) {
// store this part input to shm
size_t index = part_i * blockDim.x + threadIdx.x;
shm[threadIdx.x] = index < n ? input[index] : 0;
__syncthreads();
// scan on shared memory
ScanBlock(shm);
__syncthreads();
// write result
if (index < n) {
output[index] = shm[threadIdx.x];
}
if (threadIdx.x == blockDim.x - 1) {
part[part_i] = shm[threadIdx.x];
}
}
}
这个简单的优化把时间从72390us降低到了33726us，这源于批量的从Global Memory的读取。
5 ScanBlock接下来我们正经地优化Block内的Scan，对于Block内部的Scan，我们可以用类似的思路拆解为
-
按照Warp组织，每个Warp内部先做Scan，将每个Warp的和存储到Shared Memory中，称为WarpSum
-
启动一个单独的Warp对WarpSum进行Scan
-
每个Warp将最终结果加上上一个Warp对应的WarpSum
代码如下
__device__ void ScanWarp(int32_t* shm_data, int32_t lane) {
if (lane == 0) { // naive implemention
int32_t acc = 0;
for (int32_t i = 0; i < 32; ++i) {
acc += shm_data[i];
shm_data[i] = acc;
}
}
}
__device__ void ScanBlock(int32_t* shm_data) {
int32_t warp_id = threadIdx.x >> 5;
int32_t lane = threadIdx.x & 31; // 31 = 00011111
__shared__ int32_t warp_sum[32]; // blockDim.x / WarpSize = 32
// scan each warp
ScanWarp(shm_data, lane);
__syncthreads();
// write sum of each warp to warp_sum
if (lane == 31) {
warp_sum[warp_id] = *shm_data;
}
__syncthreads();
// use a single warp to scan warp_sum
if (warp_id == 0) {
ScanWarp(warp_sum + lane, lane);
}
__syncthreads();
// add base
if (warp_id > 0) {
*shm_data += warp_sum[warp_id - 1];
}
__syncthreads();
}
这一步从33726us降低到了9948us。

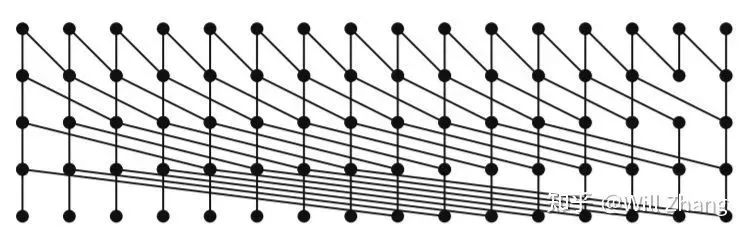

6 ScanWarp接着我们优化ScanWarp。为了方便解释算法，我们假设对16个数做Scan，算法如下图：
横向的16个点代表16个数，时间轴从上往下，每个入度为2的节点会做加法，并将结果广播到其输出节点，对于32个数的代码如下：
__device__ void ScanWarp(int32_t* shm_data) {
int32_t lane = threadIdx.x & 31;
volatile int32_t* vshm_data = shm_data;
if (lane >= 1) {
vshm_data[0] += vshm_data[-1];
}
__syncwarp();
if (lane >= 2) {
vshm_data[0] += vshm_data[-2];
}
__syncwarp();
if (lane >= 4) {
vshm_data[0] += vshm_data[-4];
}
__syncwarp();
if (lane >= 8) {
vshm_data[0] += vshm_data[-8];
}
__syncwarp();
if (lane >= 16) {
vshm_data[0] += vshm_data[-16];
}
__syncwarp();
}
这个算法下，每一步都没有bank conflict，耗时也从9948us降低到了7595us。
7 ZeroPadding接下来我们想更进一步消除ScanWarp中的if，也就是不对lane做判断，warp中所有线程都执行同样的操作，这就意味着之前不符合条件的线程会访问越界，为此我们需要做padding让其不越界。
为了实现padding，回看ScanBlock函数，其定义的warp_sum并非为kernel launch时指定的。为了更改方便，我们将其更改为kernel launch时指定，如下
__device__ void ScanBlock(int32_t* shm_data) {
int32_t warp_id = threadIdx.x >> 5;
int32_t lane = threadIdx.x & 31; // 31 = 00011111
extern __shared__ int32_t warp_sum[]; // warp_sum[32]
// scan each warp
ScanWarp(shm_data);
__syncthreads();
// write sum of each warp to warp_sum
if (lane == 31) {
warp_sum[warp_id] = *shm_data;
}
__syncthreads();
// use a single warp to scan warp_sum
if (warp_id == 0) {
ScanWarp(warp_sum + lane);
}
__syncthreads();
// add base
if (warp_id > 0) {
*shm_data += warp_sum[warp_id - 1];
}
__syncthreads();
}
__global__ void ScanAndWritePartSumKernel(const int32_t* input, int32_t* part,
int32_t* output, size_t n,
size_t part_num) {
// the first 32 is used to save warp sum
extern __shared__ int32_t shm[];
for (size_t part_i = blockIdx.x; part_i < part_num; part_i += gridDim.x) {
// store this part input to shm
size_t index = part_i * blockDim.x + threadIdx.x;
shm[32 + threadIdx.x] = index < n ? input[index] : 0;
__syncthreads();
// scan on shared memory
ScanBlock(shm + 32 + threadIdx.x);
__syncthreads();
// write result
if (index < n) {
output[index] = shm[32 + threadIdx.x];
}
if (threadIdx.x == blockDim.x - 1) {
part[part_i] = shm[32 + threadIdx.x];
}
}
}
__global__ void ScanPartSumKernel(int32_t* part, size_t part_num) {
int32_t acc = 0;
for (size_t i = 0; i < part_num; ++i) {
acc += part[i];
part[i] = acc;
}
}
__global__ void AddBaseSumKernel(int32_t* part, int32_t* output, size_t n,
size_t part_num) {
for (size_t part_i = blockIdx.x; part_i < part_num; part_i += gridDim.x) {
if (part_i == 0) {
continue;
}
int32_t index = part_i * blockDim.x + threadIdx.x;
if (index < n) {
output[index] += part[part_i - 1];
}
}
}
// for i in range(n):
// output[i] = input[0] + input[1] + ... + input[i]
void ScanThenFan(const int32_t* input, int32_t* buffer, int32_t* output,
size_t n) {
size_t part_size = 1024; // tuned
size_t part_num = (n + part_size - 1) / part_size;
size_t block_num = std::min(part_num, 128);
// use buffer[0:part_num] to save the metric of part
int32_t* part = buffer;
// after following step, part[i] = part_sum[i]
size_t shm_size = (32 + part_size) * sizeof(int32_t);
ScanAndWritePartSumKernel<<>>(
input, part, output, n, part_num);
// after following step, part[i] = part_sum[0] + part_sum[1] + ... part_sum[i]
ScanPartSumKernel<<<1, 1>>>(part, part_num);
// make final result
AddBaseSumKernel<<>>(part, output, n, part_num);
}
注意在ScanAndWritePartSumKernel的Launch时，我们重新计算了shared memory的大小，接下来为了做padding，我们要继续修改其shared memory的大小，由于每个warp需要一个16大小的padding才能避免ScanWarp的线程不越界，所以我们更改ScanThenFan为：
// for i in range(n):
// output[i] = input[0] + input[1] + ... + input[i]
void ScanThenFan(const int32_t* input, int32_t* buffer, int32_t* output,
size_t n) {
size_t part_size = 1024; // tuned
size_t part_num = (n + part_size - 1) / part_size;
size_t block_num = std::min(part_num, 128);
// use buffer[0:part_num] to save the metric of part
int32_t* part = buffer;
// after following step, part[i] = part_sum[i]
size_t warp_num = part_size / 32;
size_t shm_size = (16 + 32 + warp_num * (16 + 32)) * sizeof(int32_t);
ScanAndWritePartSumKernel<<>>(
input, part, output, n, part_num);
// after following step, part[i] = part_sum[0] + part_sum[1] + ... part_sum[i]
ScanPartSumKernel<<<1, 1>>>(part, part_num);
// make final result
AddBaseSumKernel<<>>(part, output, n, part_num);
}
注意shm_size的计算，我们为warp_sum也提供了16个数的zero padding，对应的Kernel改写如下：
__device__ void ScanWarp(int32_t* shm_data) {
volatile int32_t* vshm_data = shm_data;
vshm_data[0] += vshm_data[-1];
vshm_data[0] += vshm_data[-2];
vshm_data[0] += vshm_data[-4];
vshm_data[0] += vshm_data[-8];
vshm_data[0] += vshm_data[-16];
}
__device__ void ScanBlock(int32_t* shm_data) {
int32_t warp_id = threadIdx.x >> 5;
int32_t lane = threadIdx.x & 31;
extern __shared__ int32_t warp_sum[]; // 16 zero padding
// scan each warp
ScanWarp(shm_data);
__syncthreads();
// write sum of each warp to warp_sum
if (lane == 31) {
warp_sum[16 + warp_id] = *shm_data;
}
__syncthreads();
// use a single warp to scan warp_sum
if (warp_id == 0) {
ScanWarp(warp_sum + 16 + lane);
}
__syncthreads();
// add base
if (warp_id > 0) {
*shm_data += warp_sum[16 + warp_id - 1];
}
__syncthreads();
}
__global__ void ScanAndWritePartSumKernel(const int32_t* input, int32_t* part,
int32_t* output, size_t n,
size_t part_num) {
// the first 16 + 32 is used to save warp sum
extern __shared__ int32_t shm[];
int32_t warp_id = threadIdx.x >> 5;
int32_t lane = threadIdx.x & 31;
// initialize the zero padding
if (threadIdx.x < 16) {
shm[threadIdx.x] = 0;
}
if (lane < 16) {
shm[(16 + 32) + warp_id * (16 + 32) + lane] = 0;
}
__syncthreads();
// process each part
for (size_t part_i = blockIdx.x; part_i < part_num; part_i += gridDim.x) {
// store this part input to shm
size_t index = part_i * blockDim.x + threadIdx.x;
int32_t* myshm = shm + (16 + 32) + warp_id * (16 + 32) + 16 + lane;
*myshm = index < n ? input[index] : 0;
__syncthreads();
// scan on shared memory
ScanBlock(myshm);
__syncthreads();
// write result
if (index < n) {
output[index] = *myshm;
}
if (threadIdx.x == blockDim.x - 1) {
part[part_i] = *myshm;
}
}
}
改动比较多，主要是对相关index的计算，经过这一步优化，时间从7595us降低到了7516us，看似不大，主要是被瓶颈掩盖了。对于ScanWarp还可以用WarpShuffle来优化，为了体现其效果，我们放在后面再说，先优化当前瓶颈。
8 Recursion当前的一个瓶颈在于，之前为了简化，对于PartSum的Scan，是由一个线程去做的，这块可以递归地做，如下：
// for i in range(n):
// output[i] = input[0] + input[1] + ... + input[i]
void ScanThenFan(const int32_t* input, int32_t* buffer, int32_t* output,
size_t n) {
size_t part_size = 1024; // tuned
size_t part_num = (n + part_size - 1) / part_size;
size_t block_num = std::min(part_num, 128);
// use buffer[0:part_num] to save the metric of part
int32_t* part = buffer;
// after following step, part[i] = part_sum[i]
size_t warp_num = part_size / 32;
size_t shm_size = (16 + 32 + warp_num * (16 + 32)) * sizeof(int32_t);
ScanAndWritePartSumKernel<<>>(
input, part, output, n, part_num);
if (part_num >= 2) {
// after following step
// part[i] = part_sum[0] + part_sum[1] + ... + part_sum[i]
ScanThenFan(part, buffer + part_num, part, part_num);
// make final result
AddBaseSumKernel<<>>(part, output, n, part_num);
}
}
移除了之前的简单操作后，耗时从7516us下降到了3972us。
9 WarpShuffle接下来我们使用WarpShuffle来实现WarpScan，如下：
__device__ int32_t ScanWarp(int32_t val) {
int32_t lane = threadIdx.x & 31;
int32_t tmp = __shfl_up_sync(0xffffffff, val, 1);
if (lane >= 1) {
val += tmp;
}
tmp = __shfl_up_sync(0xffffffff, val, 2);
if (lane >= 2) {
val += tmp;
}
tmp = __shfl_up_sync(0xffffffff, val, 4);
if (lane >= 4) {
val += tmp;
}
tmp = __shfl_up_sync(0xffffffff, val, 8);
if (lane >= 8) {
val += tmp;
}
tmp = __shfl_up_sync(0xffffffff, val, 16);
if (lane >= 16) {
val += tmp;
}
return val;
}
时间从3972us降低到了3747us。
10 PTX我们可以进一步地使用cuobjdump查看其编译出的PTX代码，我添加了点注释，如下：
__device__ int32_t ScanWarp(int32_t val) {
int32_t lane = threadIdx.x & 31;
int32_t tmp = __shfl_up_sync(0xffffffff, val, 1);
if (lane >= 1) {
val += tmp;
}
tmp = __shfl_up_sync(0xffffffff, val, 2);
if (lane >= 2) {
val += tmp;
}
tmp = __shfl_up_sync(0xffffffff, val, 4);
if (lane >= 4) {
val += tmp;
}
tmp = __shfl_up_sync(0xffffffff, val, 8);
if (lane >= 8) {
val += tmp;
}
tmp = __shfl_up_sync(0xffffffff, val, 16);
if (lane >= 16) {
val += tmp;
}
return val;
}
时间从3972us降低到了3747us。
10
PTX
我们可以进一步地使用cuobjdump查看其编译出的PTX代码，我添加了点注释，如下：
// 声明寄存器
.reg .pred %p;
.reg .b32 %r;
// 读取参数到r35寄存器
ld.param.u32 %r35, [_Z8ScanWarpi_param_0];
// 读取threadIdx.x到r18寄存器
mov.u32 %r18, %tid.x;
// r1寄存器存储 lane = threadIdx.x & 31
and.b32 %r1, %r18, 31;
// r19寄存器存储0
mov.u32 %r19, 0;
// r20寄存器存储1
mov.u32 %r20, 1;
// r21寄存器存储-1
mov.u32 %r21, -1;
// r2|p1 = __shfl_up_sync(val, delta=1, 0, membermask=-1)
// 如果src lane在范围内，存储结果到r2中，并设置p1为True, 否则设置p1为False
// r2对应于我们代码中的tmp
shfl.sync.up.b32 %r2|%p1, %r35, %r20, %r19, %r21;
// p6 = (lane == 0)
setp.eq.s32 %p6, %r1, 0;
// 如果p6为真，则跳转到BB0_2
@%p6 bra BB0_2;
// val += tmp
add.s32 %r35, %r2, %r35;
// 偏移2
BB0_2:
mov.u32 %r23, 2;
shfl.sync.up.b32 %r5|%p2, %r35, %r23, %r19, %r21;
setp.lt.u32 %p7, %r1, 2;
@%p7 bra BB0_4;
add.s32 %r35, %r5, %r35;
...
可以看到，我们可以直接使用__shfl_up_sync生成的p寄存器来做条件加法，从而避免生成的条件跳转指令，代码如下：
__device__ __forceinline__ int32_t ScanWarp(int32_t val) {
int32_t result;
asm("{"
".reg .s32 r;"
".reg .pred p;"
"shfl.sync.up.b32 r0|p0, %1, 1, 0, -1;"
"@p0 add.s32 r0, r0, %1;"
"shfl.sync.up.b32 r1|p1, r0, 2, 0, -1;"
"@p1 add.s32 r1, r1, r0;"
"shfl.sync.up.b32 r2|p2, r1, 4, 0, -1;"
"@p2 add.s32 r2, r2, r1;"
"shfl.sync.up.b32 r3|p3, r2, 8, 0, -1;"
"@p3 add.s32 r3, r3, r2;"
"shfl.sync.up.b32 r4|p4, r3, 16, 0, -1;"
"@p4 add.s32 r4, r4, r3;"
"mov.s32 %0, r4;"
"}"
: "=r"(result)
: "r"(val));
return result;
}
此外移除依赖的大量shared memory，如下：
__device__ __forceinline__ int32_t ScanBlock(int32_t val) {
int32_t warp_id = threadIdx.x >> 5;
int32_t lane = threadIdx.x & 31;
extern __shared__ int32_t warp_sum[];
// scan each warp
val = ScanWarp(val);
__syncthreads();
// write sum of each warp to warp_sum
if (lane == 31) {
warp_sum[warp_id] = val;
}
__syncthreads();
// use a single warp to scan warp_sum
if (warp_id == 0) {
warp_sum[lane] = ScanWarp(warp_sum[lane]);
}
__syncthreads();
// add base
if (warp_id > 0) {
val += warp_sum[warp_id - 1];
}
__syncthreads();
return val;
}
__global__ void ScanAndWritePartSumKernel(const int32_t* input, int32_t* part,
int32_t* output, size_t n,
size_t part_num) {
for (size_t part_i = blockIdx.x; part_i < part_num; part_i += gridDim.x) {
size_t index = part_i * blockDim.x + threadIdx.x;
int32_t val = index < n ? input[index] : 0;
val = ScanBlock(val);
__syncthreads();
if (index < n) {
output[index] = val;
}
if (threadIdx.x == blockDim.x - 1) {
part[part_i] = val;
}
}
}
__global__ void AddBaseSumKernel(int32_t* part, int32_t* output, size_t n,
size_t part_num) {
for (size_t part_i = blockIdx.x; part_i < part_num; part_i += gridDim.x) {
if (part_i == 0) {
continue;
}
int32_t index = part_i * blockDim.x + threadIdx.x;
if (index < n) {
output[index] += part[part_i - 1];
}
}
}
// for i in range(n):
// output[i] = input[0] + input[1] + ... + input[i]
void ScanThenFan(const int32_t* input, int32_t* buffer, int32_t* output,
size_t n) {
size_t part_size = 1024; // tuned
size_t part_num = (n + part_size - 1) / part_size;
size_t block_num = std::min(part_num, 128);
// use buffer[0:part_num] to save the metric of part
int32_t* part = buffer;
// after following step, part[i] = part_sum[i]
size_t shm_size = 32 * sizeof(int32_t);
ScanAndWritePartSumKernel<<>>(
input, part, output, n, part_num);
if (part_num >= 2) {
// after following step
// part[i] = part_sum[0] + part_sum[1] + ... + part_sum[i]
ScanThenFan(part, buffer + part_num, part, part_num);
// make final result
AddBaseSumKernel<<>>(part, output, n, part_num);
}
}
此时耗时下降到了3442us。
11 ReduceThenScan不同于ScanThenFan，其在第一遍每个Part内部做Scan。在这一节中我们将在第一遍只算和，而在最后一步做Scan，代码如下：
__global__ void ReducePartSumKernel(const int32_t* input, int32_t* part_sum,
int32_t* output, size_t n,
size_t part_num) {
using BlockReduce = cub::BlockReduce;
__shared__ typename BlockReduce::TempStorage temp_storage;
for (size_t part_i = blockIdx.x; part_i < part_num; part_i += gridDim.x) {
size_t index = part_i * blockDim.x + threadIdx.x;
int32_t val = index < n ? input[index] : 0;
int32_t sum = BlockReduce(temp_storage).Sum(val);
if (threadIdx.x == 0) {
part_sum[part_i] = sum;
}
__syncthreads();
}
}
__global__ void ScanWithBaseSum(const int32_t* input, int32_t* part_sum,
int32_t* output, size_t n, size_t part_num) {
for (size_t part_i = blockIdx.x; part_i < part_num; part_i += gridDim.x) {
size_t index = part_i * blockDim.x + threadIdx.x;
int32_t val = index < n ? input[index] : 0;
val = ScanBlock(val);
__syncthreads();
if (part_i >= 1) {
val += part_sum[part_i - 1];
}
if (index < n) {
output[index] = val;
}
}
}
void ReduceThenScan(const int32_t* input, int32_t* buffer, int32_t* output,
size_t n) {
size_t part_size = 1024; // tuned
size_t part_num = (n + part_size - 1) / part_size;
size_t block_num = std::min(part_num, 128);
int32_t* part_sum = buffer; // use buffer[0:part_num]
if (part_num >= 2) {
ReducePartSumKernel<<>>(input, part_sum, output, n,
part_num);
ReduceThenScan(part_sum, buffer + part_num, part_sum, part_num);
}
ScanWithBaseSum<<>>(
input, part_sum, output, n, part_num);
}
为了简化，我们在代码中使用cub的BlockReduce，这个版本的耗时为3503us， 略有上升。
之前的算法都存在递归，现在我们想办法消除递归，延续ReduceThenScan的想法，只需要我们把Part切得更大一些，比如让Part数和Block数相等，就可以避免递归，代码如下：
__global__ void ReducePartSumKernelSinglePass(const int32_t* input,
int32_t* g_part_sum, size_t n,
size_t part_size) {
// this block process input[part_begin:part_end]
size_t part_begin = blockIdx.x * part_size;
size_t part_end = min((blockIdx.x + 1) * part_size, n);
// part_sum
int32_t part_sum = 0;
for (size_t i = part_begin + threadIdx.x; i < part_end; i += blockDim.x) {
part_sum += input[i];
}
using BlockReduce = cub::BlockReduce;
__shared__ typename BlockReduce::TempStorage temp_storage;
part_sum = BlockReduce(temp_storage).Sum(part_sum);
__syncthreads();
if (threadIdx.x == 0) {
g_part_sum[blockIdx.x] = part_sum;
}
}
__global__ void ScanWithBaseSumSinglePass(const int32_t* input,
int32_t* g_base_sum, int32_t* output,
size_t n, size_t part_size,
bool debug) {
// base sum
__shared__ int32_t base_sum;
if (threadIdx.x == 0) {
if (blockIdx.x == 0) {
base_sum = 0;
} else {
base_sum = g_base_sum[blockIdx.x - 1];
}
}
__syncthreads();
// this block process input[part_begin:part_end]
size_t part_begin = blockIdx.x * part_size;
size_t part_end = (blockIdx.x + 1) * part_size;
for (size_t i = part_begin + threadIdx.x; i < part_end; i += blockDim.x) {
int32_t val = i < n ? input[i] : 0;
val = ScanBlock(val);
if (i < n) {
output[i] = val + base_sum;
}
__syncthreads();
if (threadIdx.x == blockDim.x - 1) {
base_sum += val;
}
__syncthreads();
}
}
void ReduceThenScanTwoPass(const int32_t* input, int32_t* part_sum,
int32_t* output, size_t n) {
size_t part_num = 1024;
size_t part_size = (n + part_num - 1) / part_num;
ReducePartSumKernelSinglePass<<>>(input, part_sum, n,
part_size);
ScanWithBaseSumSinglePass<<<1, 1024, 32 * sizeof(int32_t)>>>(
part_sum, nullptr, part_sum, part_num, part_num, true);
ScanWithBaseSumSinglePass<<>>(
input, part_sum, output, n, part_size, false);
}
耗时下降至2467us。
12 结语即使做了很多优化，对比CUB的时间1444us，仍然有较大优化空间。不过本人一向秉承“打不过就加入”的原则，而且CUB也是开源的，后面有时间再深入CUB代码写一篇代码解读。
参考：https//:www.amazon.com/CUDA-Handbook-Comprehensive-Guide-Programming/dp/0321809467
原文链接：https://zhuanlan.zhihu.com/p/423992093
本文仅做学术分享，如有侵权，请联系删文。
3D视觉精品课程推荐：
1.面向自动驾驶领域的多传感器数据融合技术
2.面向自动驾驶领域的3D点云目标检测全栈学习路线！(单模态+多模态/数据+代码) 3.彻底搞透视觉三维重建：原理剖析、代码讲解、及优化改进 4.国内首个面向工业级实战的点云处理课程 5.激光-视觉-IMU-GPS融合SLAM算法梳理和代码讲解 6.彻底搞懂视觉-惯性SLAM：基于VINS-Fusion正式开课啦 7.彻底搞懂基于LOAM框架的3D激光SLAM: 源码剖析到算法优化 8.彻底剖析室内、室外激光SLAM关键算法原理、代码和实战(cartographer+LOAM +LIO-SAM)
9.从零搭建一套结构光3D重建系统[理论+源码+实践]
10.单目深度估计方法：算法梳理与代码实现
11.自动驾驶中的深度学习模型部署实战
12.相机模型与标定(单目+双目+鱼眼）
13.重磅！四旋翼飞行器：算法与实战
重磅！3DCVer-学术论文写作投稿 交流群已成立
扫码添加小助手微信，可申请加入3D视觉工坊-学术论文写作与投稿 微信交流群，旨在交流顶会、顶刊、SCI、EI等写作与投稿事宜。
同时也可申请加入我们的细分方向交流群，目前主要有3D视觉、CV&深度学习、SLAM、三维重建、点云后处理、自动驾驶、多传感器融合、CV入门、三维测量、VR/AR、3D人脸识别、医疗影像、缺陷检测、行人重识别、目标跟踪、视觉产品落地、视觉竞赛、车牌识别、硬件选型、学术交流、求职交流、ORB-SLAM系列源码交流、深度估计等微信群。
一定要备注：研究方向+学校/公司+昵称，例如：”3D视觉 + 上海交大 + 静静“。请按照格式备注，可快速被通过且邀请进群。原创投稿也请联系。
▲长按加微信群或投稿
▲长按关注公众号
3D视觉从入门到精通知识星球：针对3D视觉领域的视频课程（三维重建系列、三维点云系列、结构光系列、手眼标定、相机标定、激光/视觉SLAM、自动驾驶等）、知识点汇总、入门进阶学习路线、最新paper分享、疑问解答五个方面进行深耕，更有各类大厂的算法工程人员进行技术指导。与此同时，星球将联合知名企业发布3D视觉相关算法开发岗位以及项目对接信息，打造成集技术与就业为一体的铁杆粉丝聚集区，近4000星球成员为创造更好的AI世界共同进步，知识星球入口：
学习3D视觉核心技术，扫描查看介绍，3天内无条件退款
圈里有高质量教程资料、答疑解惑、助你高效解决问题
觉得有用，麻烦给个赞和在看~
