使用 CSS Grid Generator来快速使用及学习 Grid 布局

@大迁世界 发布时间:2019-08-16 07:30:00 ,浏览量:6

CSS Grid Generator

CSS Grid Generator 是一个由Sarah Drasner创建的免费工具。它是一个可视化设计工具,允许咱们创建一个基本的 grid 布局,然后就可以使用生成对应的代码,帮助咱们快速布局。

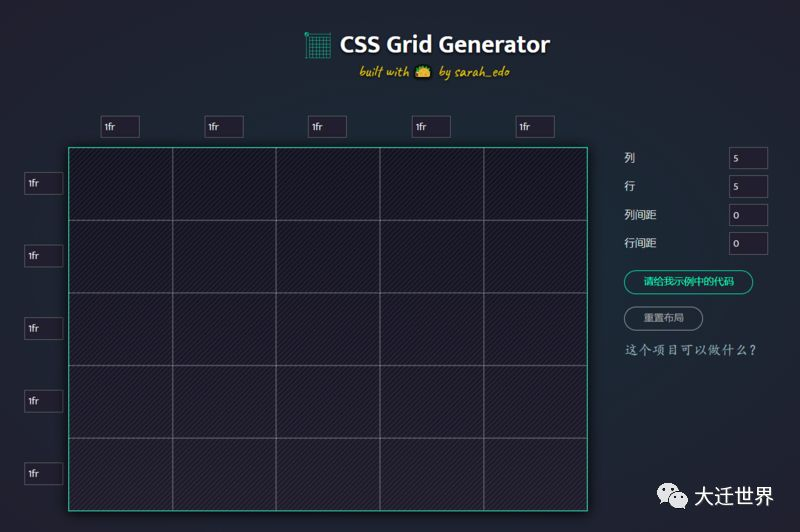

第一次进入是界面是这样子的:



640?wx_fmt=png

CSS Grid 布局示例

当我正在学习一些东西时,我发现最好的学习方法是使用现有的工具构建实用的东西。在本文中,咱们先从一个简单的布局开始,然后使用CSS Grid Generator创建在实际项目中使用所需的代码。

首先从一个典型的布局开始,如下所示:

640?wx_fmt=png

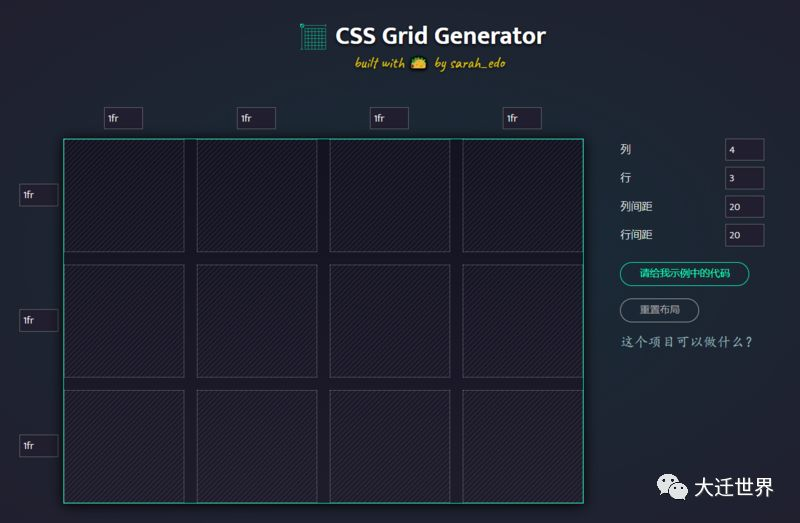

接着在 CSS Grid Generator 界面的右侧更新对应的以下内容:

  • 行: 4

  • 列: 3

  • 列间距: 20

  • 行间距: 20

间距让咱们的内容之间有一定的空白。可以只使用列间距,但我想在 Header 和 Footer 之前留出一些空白,所以还同时使用行间距。

640?wx_fmt=png

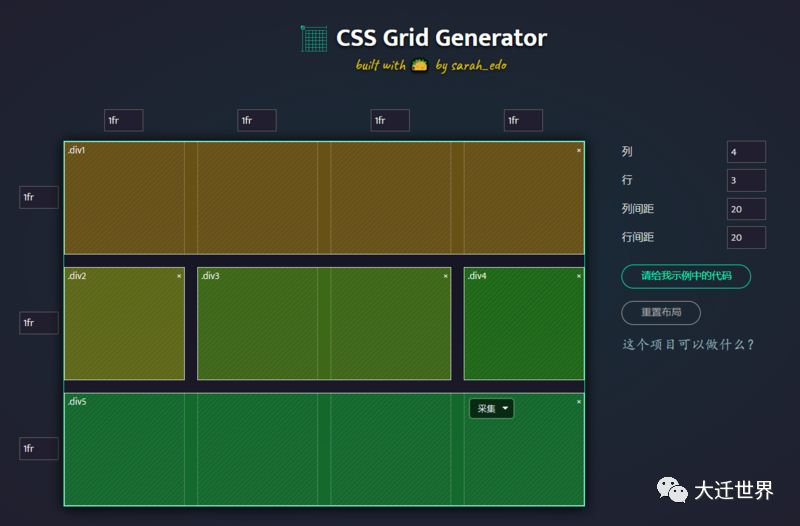

接下来,就是需要定义应用程序的不同区域。在 CSS Grid Generator 中,可以单击并拖动到需要合并地方来创建一个区域。咱们希望Footer跨越整个网格,侧边栏占用一个单元格,主内容区域跨越2列,Footer 跨越4列,最终效果,如下:

640?wx_fmt=png

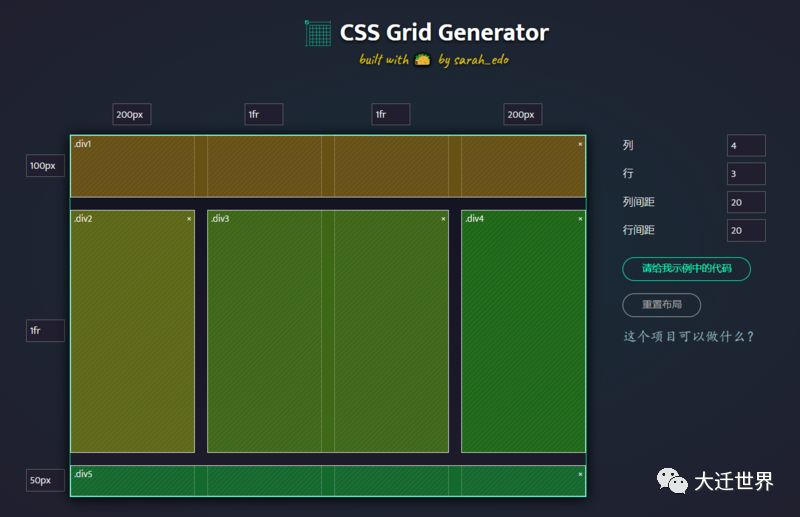

这看起来有点像咱们想要的布局,但仍然需要定义一些具体的尺寸。在CSS Grid Generator 会注意到每行和每列旁边都有一个输入框,可用于设置特定大小。

  • Header: 100px height

  • Sidebars: 200px width

  • Footer: 50px height

640?wx_fmt=png

这看起来更像更像咱们想要的布局,但是你可能会问1fr是多少。

轨道可以用任何长度单位来定义。Grid还引入了一个额外的长度单位,以帮助各位创建灵活的Grid轨道。新的fr单元表示网格容器中可用空间的一小部分。

第二行的1fr会告诉区域占用剩余的可用空间。如果将容器设置为100vh,就会占据整个页面的内容,列也是如此。

CSS Grid Generated 生成的代码

640?wx_fmt=png

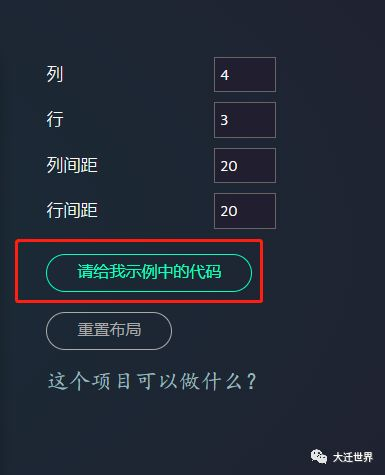

点击“请给我示例中的代码”就可以查看对应布局生成的 CSS 代码:



.parent {  display: grid;  grid-template-columns: 200px 1fr 1fr 200px;  grid-template-rows: 100px 1fr 50px;  grid-column-gap: 20px; grid-row-gap: 20px;  .div1 { grid-area: 1 / 1 / 2 / 5; }  .div2 { grid-area: 2 / 1 / 3 / 2; }  .div3 { grid-area: 2 / 2 / 3 / 4; }  .div4 { grid-area: 2 / 4 / 3 / 5; }  .div5 { grid-area: 3 / 1 / 4 / 5; }  }

创建一个simple-layout.htm并添加以下代码:



           Simple Layout        body {       margin: 0;       padding: 0;     }

接下来添加上面生成的 CSS:



           Simple Layout        body {       margin: 0;       padding: 0;     }     .parent {       display: grid;       grid-template-columns: 200px 1fr 1fr 200px;       grid-template-rows: 100px 1fr 50px;       grid-column-gap: 20px;       grid-row-gap: 20px;       height: 100vh;     }     .div1 {       grid-area: 1 / 1 / 2 / 5;     }     .div2 {       grid-area: 2 / 1 / 3 / 2;     }     .div3 {       grid-area: 2 / 2 / 3 / 4;     }     .div4 {       grid-area: 2 / 4 / 3 / 5;     }     .div5 {       grid-area: 3 / 1 / 4 / 5;     }

接着添加对应的标签:



              Header

           Left Sidebar
           Main Content
           Right Sidebar
           Footer


最后添加下面的CSS,它将为.div1 - .div5添加一些背景色:



div:not(.parent) {   padding: 10px;   background-color: rgb(199, 199, 199); }

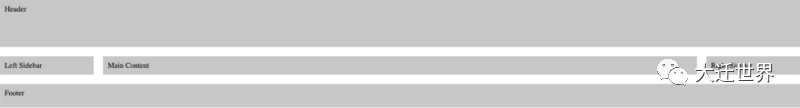

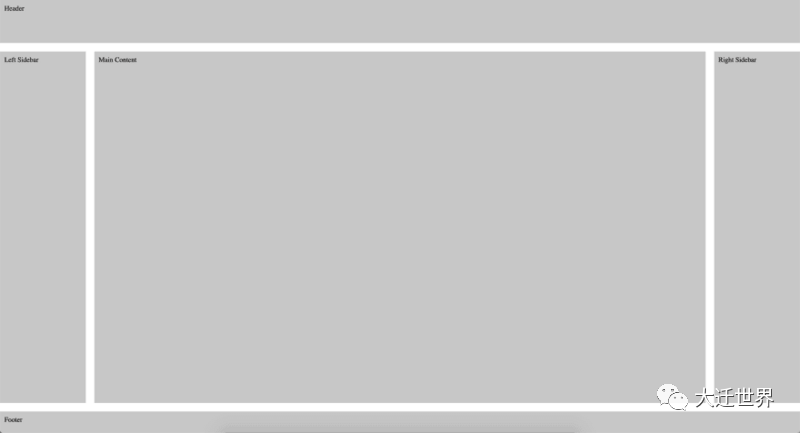

运行:

640?wx_fmt=png

这看起来很好,但你希望它占据整个浏览器窗口。所以需要向.parent类添加height: 100vh



.parent {   display: grid;   grid-template-columns: 200px 1fr 1fr 200px;   grid-template-rows: 100px 1fr 50px;   grid-column-gap: 20px;   grid-row-gap: 20px;   height: 100vh; }

最终效果:

640?wx_fmt=png

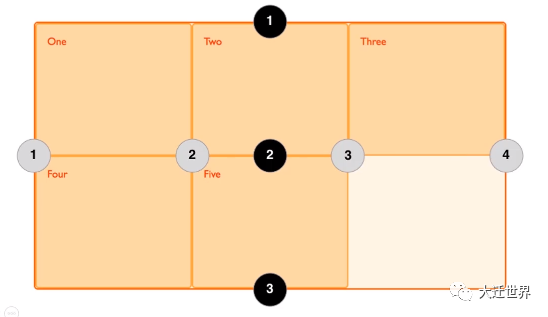

网格轨道(Grid Track) 加餐

两个相邻的网络线之间为网络轨道。

640?wx_fmt=png

图中的同方向 1 和 2, 2 和 3 都是相邻的网络线,当然同方向的 1 和 3 或者不同方向的 1 和 2 就不是相邻的网络线。

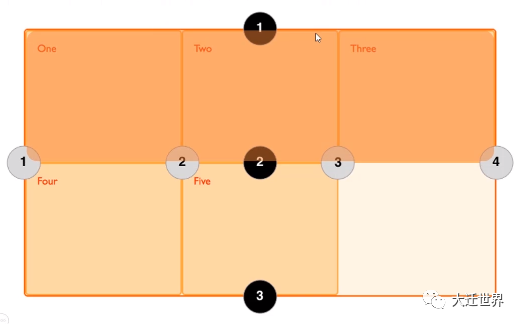

相邻的网络线为网格轨道,如下,黑色1 和 2 之间就构成了网络轨道(背景深橘色):

640?wx_fmt=png

上面总共有 5 个网络轨道,水平方向灰色 1 和 2, 2 和 3, 3 和 4,竖直方向黑色的 1 和 2, 2 和 3,共 5 个。

网格单元(Grid Cell) 加餐

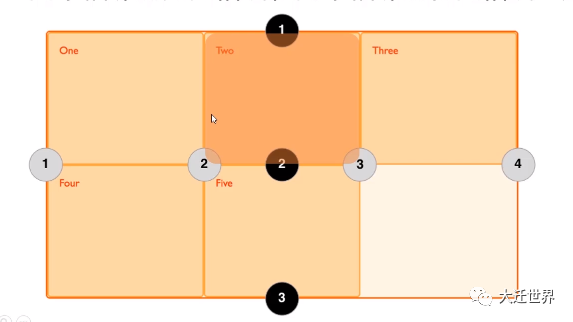

两个相邻的列网络线和两个相邻的行网络线组成的就是网络单元,如下面的深橘色背景就是网络单元。

640?wx_fmt=png

网络单元要与网络项(项目)区别开来,网络项是 Html 中可以找的到 Dom 元素,网络单元是在定义容器的时候,它就会分割出来的一个一个单元格。

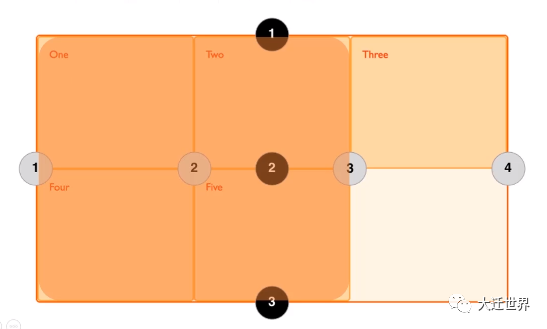

网格区域(Grid Area) 加餐

四个网络线包围的总空间。

640?wx_fmt=png

fr单位(加餐)

剩余空间分配数,用于在一系列长度值中分配剩余空间,如果多个已指定了多个部分,则剩下的空间根据各自的数字按比例分配。



参考:

https://www.danvega.dev/blog/2019/08/08/css-grid-generator

慕课网:grid 教程
