Activiti 流程启动及节点流转源码分析

作者：jiankunking 出处：http://blog.csdn.net/jiankunking

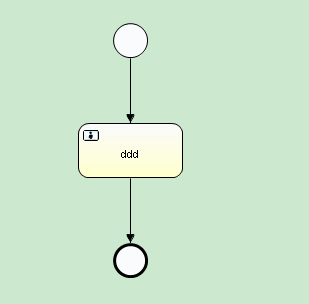

本文主要是以activiti-study中的xiaomage.xml流程图为例进行跟踪分析 具体的流程图如下： 流程图对应的XML文件如下：


        Place documentation for the 'MyProcess' process here.

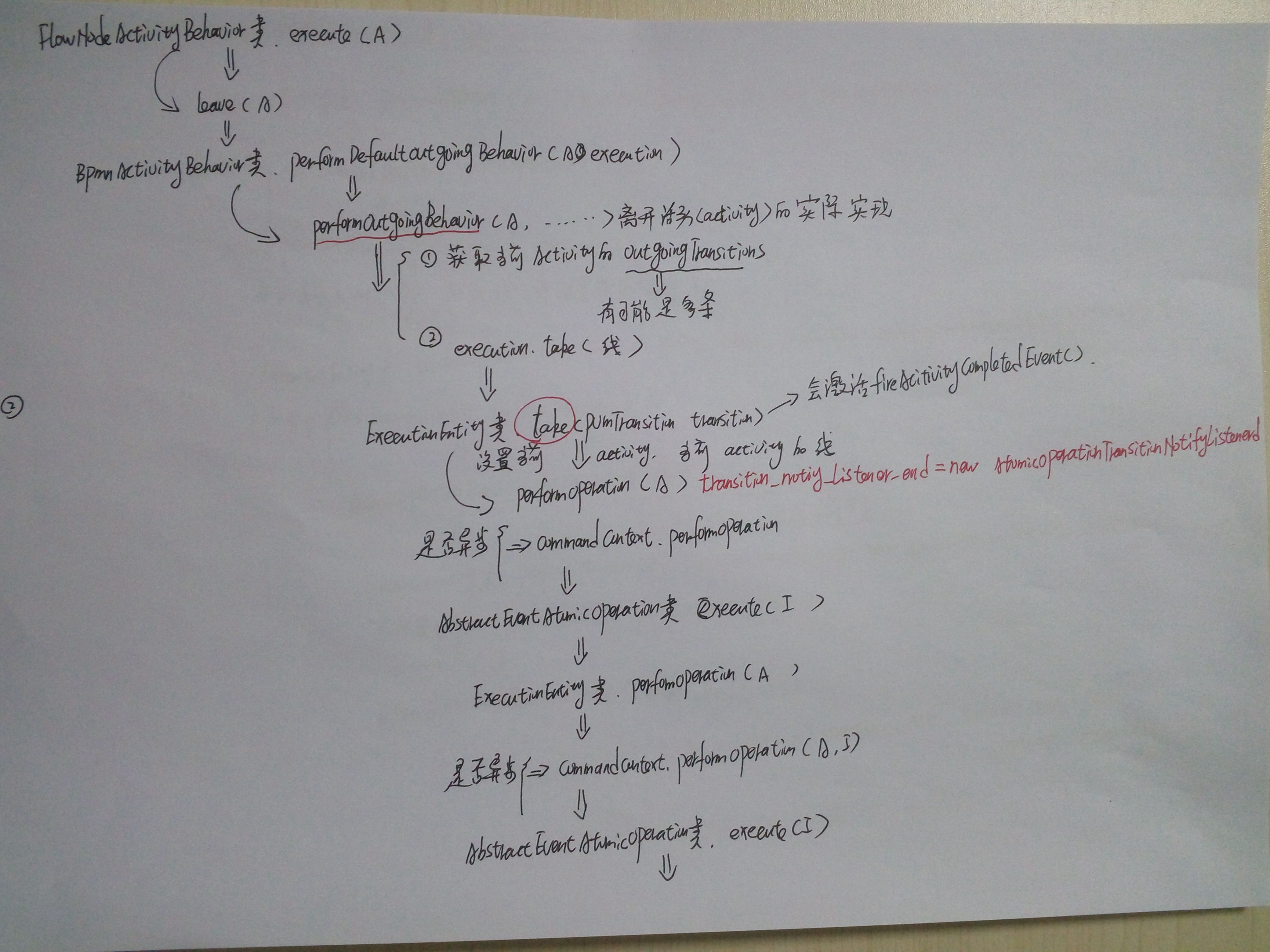

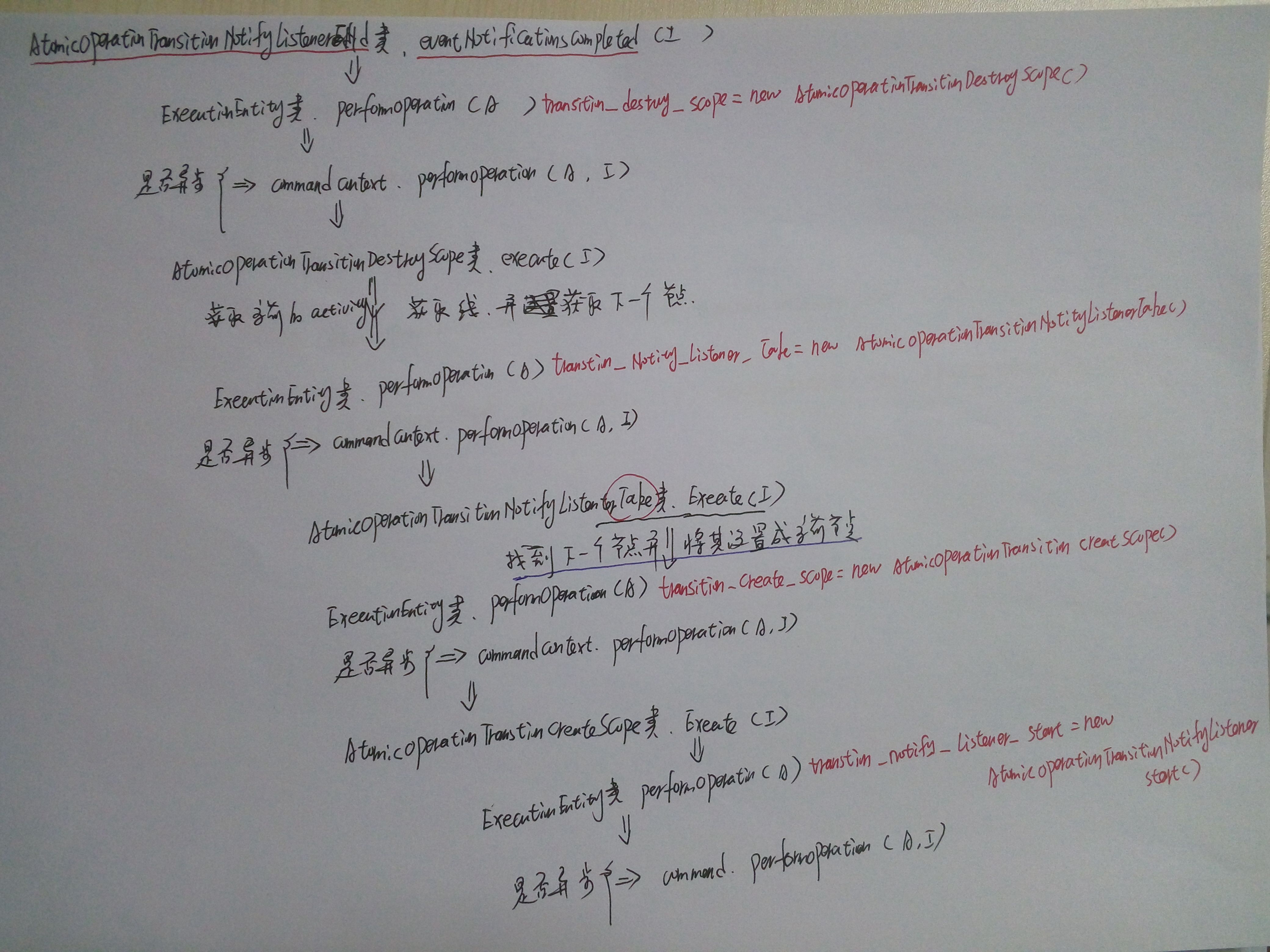

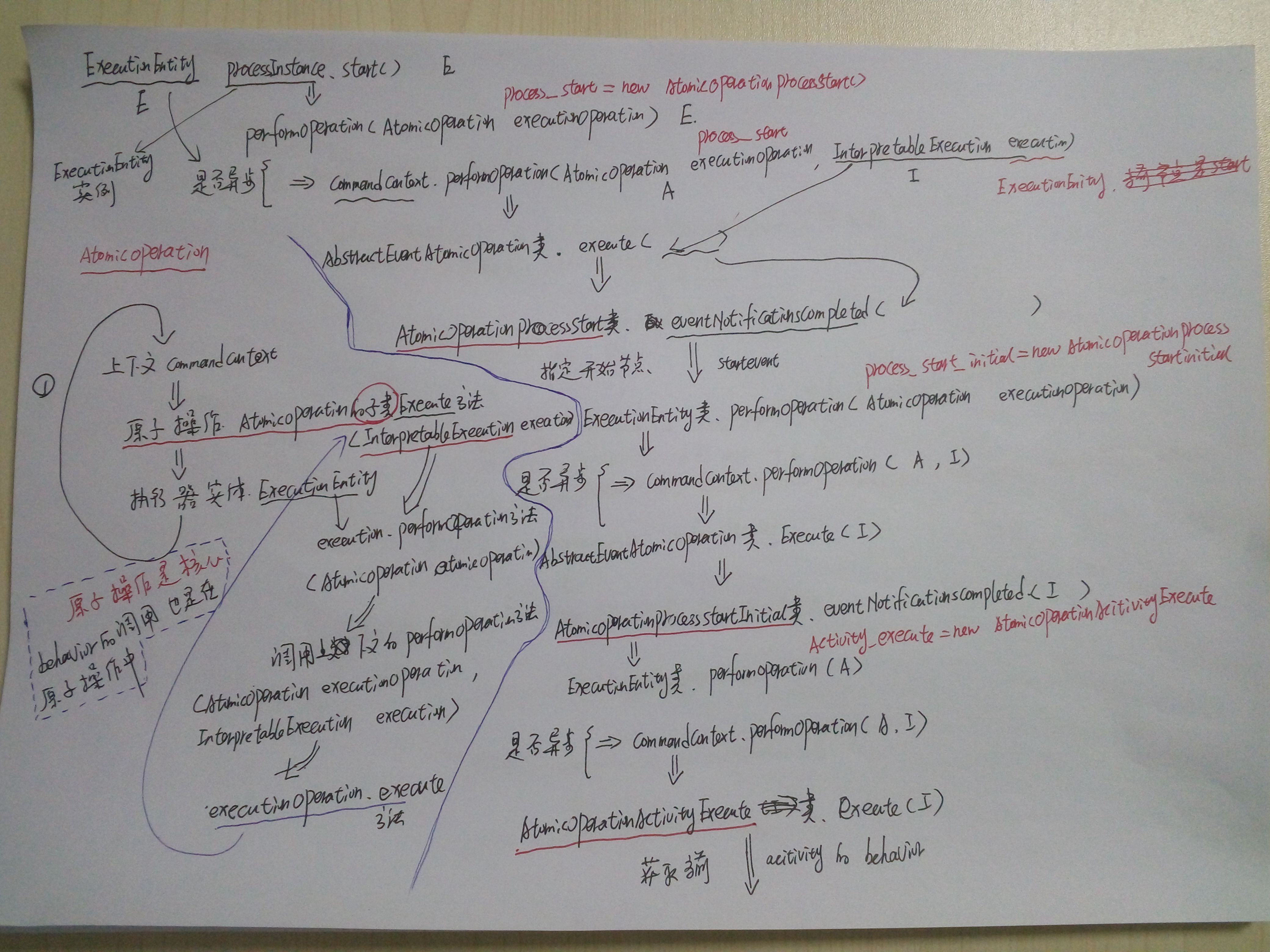

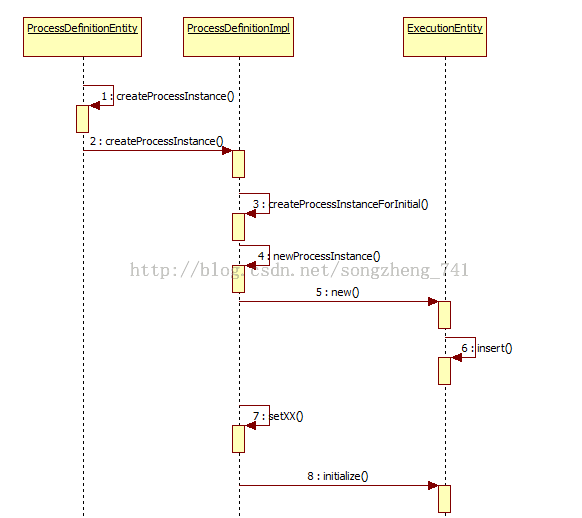

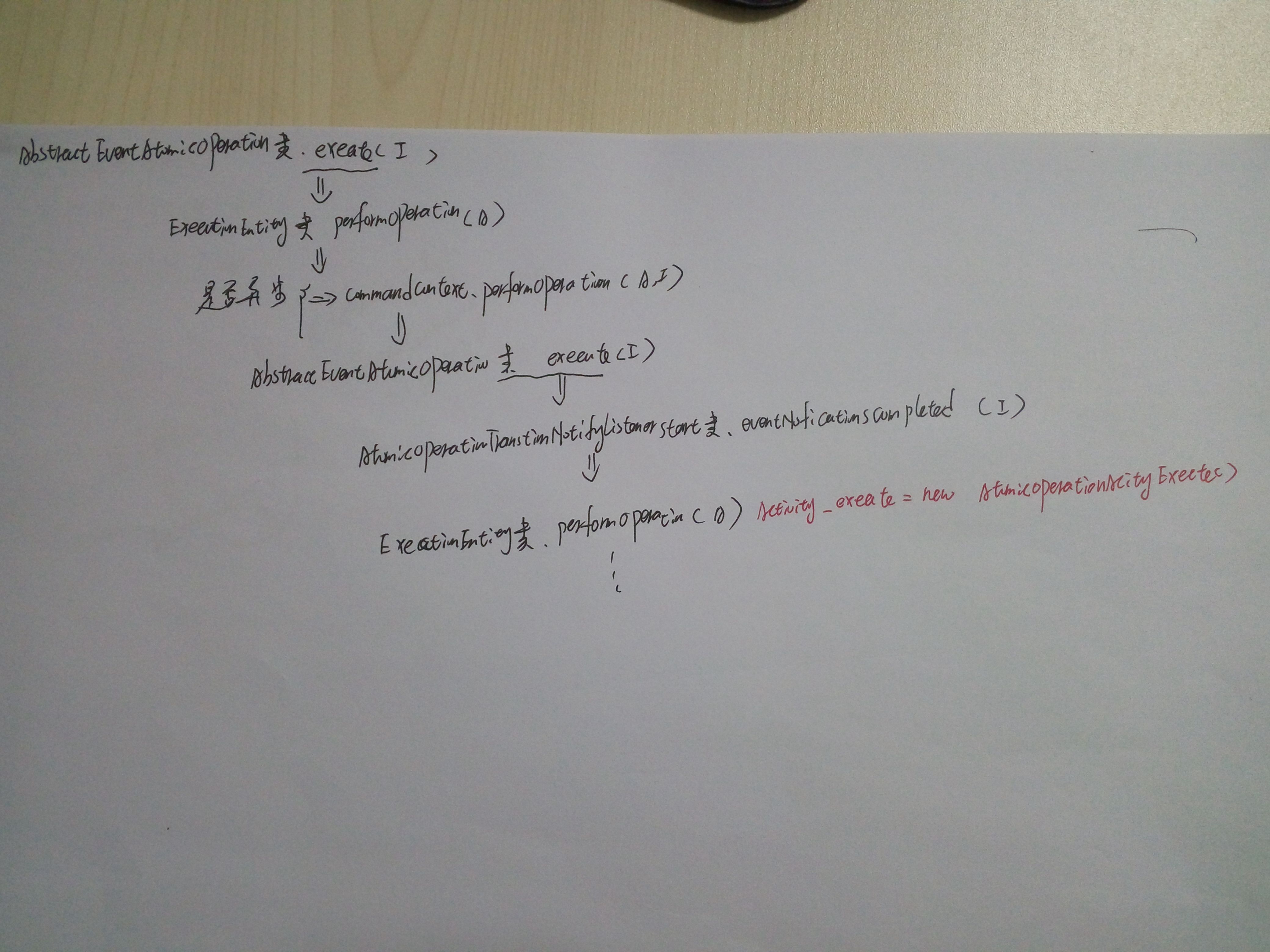

流程实例创建过程如下（下图转载自：activiti 源码笔记之startProcess）： 流程启动跟踪分析： 图一： 图二： 图三： 图四： 以上主要是跟踪分析了，三个节点之间的流转情况。 在流转的时候需要注意以下两个接口： 原子操作（AtomicOperation）接口：

public interface AtomicOperation {

  AtomicOperation PROCESS_START = new AtomicOperationProcessStart();
  AtomicOperation PROCESS_START_INITIAL = new AtomicOperationProcessStartInitial();
  AtomicOperation PROCESS_END = new AtomicOperationProcessEnd();
  AtomicOperation ACTIVITY_START = new AtomicOperationActivityStart();
  AtomicOperation ACTIVITY_EXECUTE = new AtomicOperationActivityExecute();
  AtomicOperation ACTIVITY_END = new AtomicOperationActivityEnd();
  AtomicOperation TRANSITION_NOTIFY_LISTENER_END = new AtomicOperationTransitionNotifyListenerEnd();
  AtomicOperation TRANSITION_DESTROY_SCOPE = new AtomicOperationTransitionDestroyScope();
  AtomicOperation TRANSITION_NOTIFY_LISTENER_TAKE = new AtomicOperationTransitionNotifyListenerTake();
  AtomicOperation TRANSITION_CREATE_SCOPE = new AtomicOperationTransitionCreateScope();
  AtomicOperation TRANSITION_NOTIFY_LISTENER_START = new AtomicOperationTransitionNotifyListenerStart();

  AtomicOperation DELETE_CASCADE = new AtomicOperationDeleteCascade();
  AtomicOperation DELETE_CASCADE_FIRE_ACTIVITY_END = new AtomicOperationDeleteCascadeFireActivityEnd();

  void execute(InterpretableExecution execution);

  boolean isAsync(InterpretableExecution execution);
}

注意：

void execute(InterpretableExecution execution);

InterpretableExecution接口：

public interface InterpretableExecution extends ActivityExecution, ExecutionListenerExecution, PvmProcessInstance {

  void take(PvmTransition transition);

  void take(PvmTransition transition, boolean fireActivityCompletedEvent);

  void setEventName(String eventName);

  void setEventSource(PvmProcessElement element);

  Integer getExecutionListenerIndex();
  void setExecutionListenerIndex(Integer executionListenerIndex);

  ProcessDefinitionImpl getProcessDefinition();

  void setActivity(ActivityImpl activity);

  void performOperation(AtomicOperation etomicOperation);

  boolean isScope();

  void destroy();

  void remove();

  InterpretableExecution getReplacedBy();
  void setReplacedBy(InterpretableExecution replacedBy);

  InterpretableExecution getSubProcessInstance();
  void setSubProcessInstance(InterpretableExecution subProcessInstance);

  InterpretableExecution getSuperExecution();

  void deleteCascade(String deleteReason);

  boolean isDeleteRoot();

  TransitionImpl getTransition();
  void setTransition(TransitionImpl object);

  void initialize();

  void setParent(InterpretableExecution parent);

  void setProcessDefinition(ProcessDefinitionImpl processDefinitionImpl);

  void setProcessInstance(InterpretableExecution processInstance);

  boolean isEventScope();

  void setEventScope(boolean isEventScope);

  StartingExecution getStartingExecution();

  void disposeStartingExecution();
}

注意：

void performOperation(AtomicOperation etomicOperation);

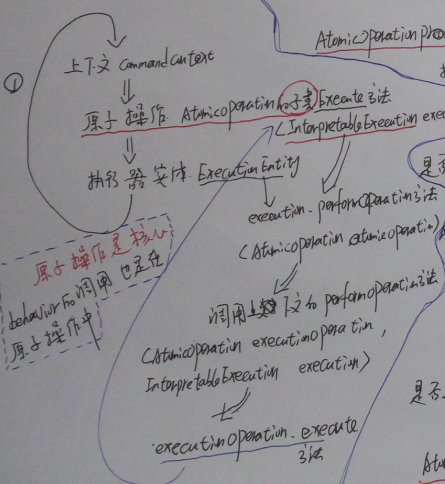

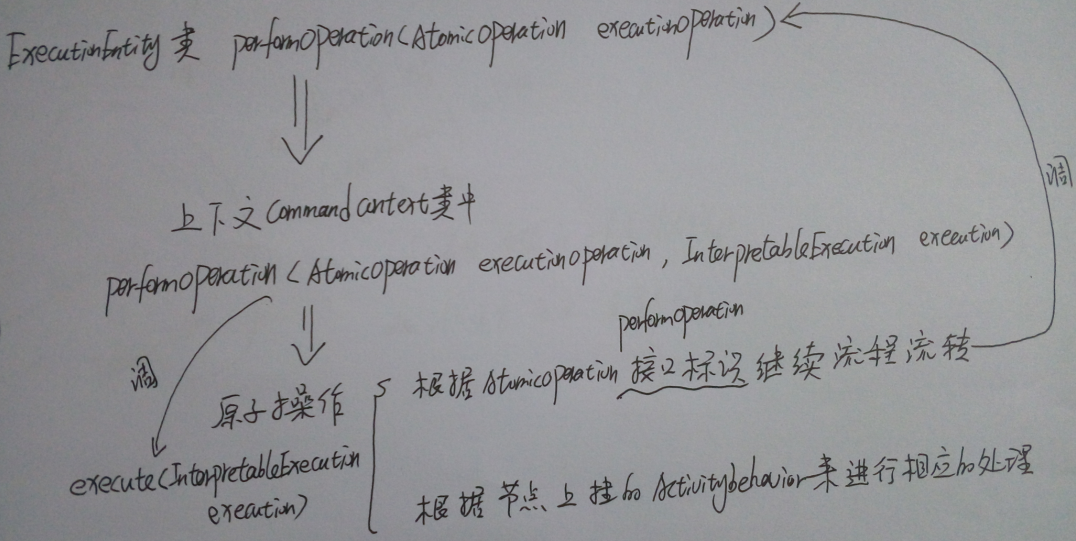

单独摘出来的两个方法是图一中： 上下文、原子操作、执行器实体三者相互调用的关键。 上图的具体调用情况如下： ExecutionEntity类中的：

public void performOperation(AtomicOperation executionOperation) {
    if (executionOperation.isAsync(this)) {
        scheduleAtomicOperationAsync(executionOperation);
    } else {
        performOperationSync(executionOperation);
    }
}

protected void performOperationSync(AtomicOperation executionOperation) {
    Context
    .getCommandContext()
    .performOperation(executionOperation, this);
}

performOperation函数中调用上下文CommandContext类中的：

public void performOperation(AtomicOperation executionOperation, InterpretableExecution execution) {
    nextOperations.add(executionOperation);
    if (nextOperations.size()==1) {
        try {
            Context.setExecutionContext(execution);
            while (!nextOperations.isEmpty()) {
                AtomicOperation currentOperation = nextOperations.removeFirst();
                if (log.isTraceEnabled()) {
                    log.trace("AtomicOperation: {} on {}", currentOperation, this);
                }
                if (execution.getReplacedBy() == null) {
                    currentOperation.execute(execution);
                } else {
                    currentOperation.execute(execution.getReplacedBy());
                }
            }
        } finally {
            Context.removeExecutionContext();
        }
    }
}

performOperation函数调用原子操作（AtomicOperation）接口中的void execute(InterpretableExecution execution)来处理。 该处的处理分为两种情况： 1、根据AtomicOperation接口标识来继续进行流转 （再次调用ExecutionEntity类中的performOperation(AtomicOperation executionOperation)方法） 比如： PROCESS_START=》PROCESS_START_INITIAL=》ACTIVITY_EXECUTE。。。。。。 具体可以参考本文图一到图四的代码跟踪中的标识。 2、根据节点上的ActivityBehavior类进行不同的处理 Activiti节点（开始、结束、任务、网关等等）都是Activity类型的，只是其挂的ActivityBehavior不同，通过不同的ActivityBehavior来实现相应的操作。
